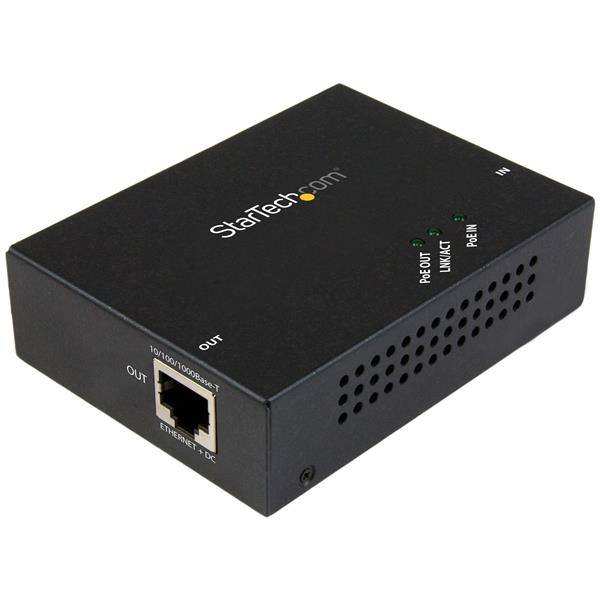

StarTech.com 1-Port Gigabit PoE+ Extender – 802.3at and 802.3af – 100 m (330 ft)

$259.89 (Incl. GST)

StarTech.com 1 Port Gigabit PoE+ Extender 802.3at & 802.3af – 100m (330ft) – Power over Ethernet Extender – PoE Repeater Network

In stock

SKU: STARTECH.COM_POEEXT1GAT Category:

Print

Description

This Gigabit PoE+ extender spans your Power over Ethernet (PoE) device over longer distances, letting you double the 100m limitations of a traditional PoE infrastructure.

Now you can connect your Gigabit PoE device up to a maximum of 200m away, so it’s easy to install a remote IP camera or access point. Plus the extender can be daisy-chained for more scalability.

Unrestricted PoE+ range and convenience
Need more distance? This convenient PoE+ repeater maximizes range and flexibility by extending your PoE connection by an extra 100m (330ft), while providing 24-watt power output to compatible devices.

Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered device (PD) and you’re all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com PoE+ injector (POEINJ1G) or PoE+ switch (IES81000POE).

Daisy chain for longer distance and flexibility
Still need more distance? If an extra 100m isn’t enough, this full-featured PoE extender offers daisy chain capability.

You can easily connect four extenders together, letting you install your PoE+ PD up to 500m (1640ft) away. It’s perfect for business, education, and retail environments (output wattage is dependent on the number of daisy-chained extenders used).

Convenient installation options and durable construction
Get up and running quickly. This Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter.

You can enjoy reliable performance with little worry of downtime or failure, the extender features a rugged metal housing with built-in ESD and surge protection.

The POEEXT1GAT is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Additional information

Type

Network repeater

Brand

StarTech.com

Maximum transfer distance

100 m

Data transfer rate

2000 Mbit/s

Product colour

Black

Certification

CE, FCC, TAA, REACH

Operating temperature (T-T)

0 – 50 °C

Storage temperature (T-T)

-10 – 85 °C

Operating relative humidity (H-H)

5 – 95%

Width

69 mm

Depth

94 mm

Height

25 mm

Weight

193 g

Manual

Yes

Package width

135 mm

Package depth

205 mm

Package height

70 mm

Package weight

343 g

Mean time between failures (MTBF)

50000 h

Cabling technology

10/100/1000Base-T(X)

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

AC input voltage

52 – 56 V

LED indicators

Activity, Link, PoE

Power consumption (max)

3.2 W

Auto MDIX IEEE

Yes

Auto-negotiation

Yes

Duplex system

Full, Half

Plug and Play

Yes

Power over Ethernet (PoE) ports quantity

2

Housing material

Steel

Power over Ethernet (PoE)

Yes

Jumbo frames support

No

Harmonized System (HS) code

85176990

Compliance certificates

RoHS
