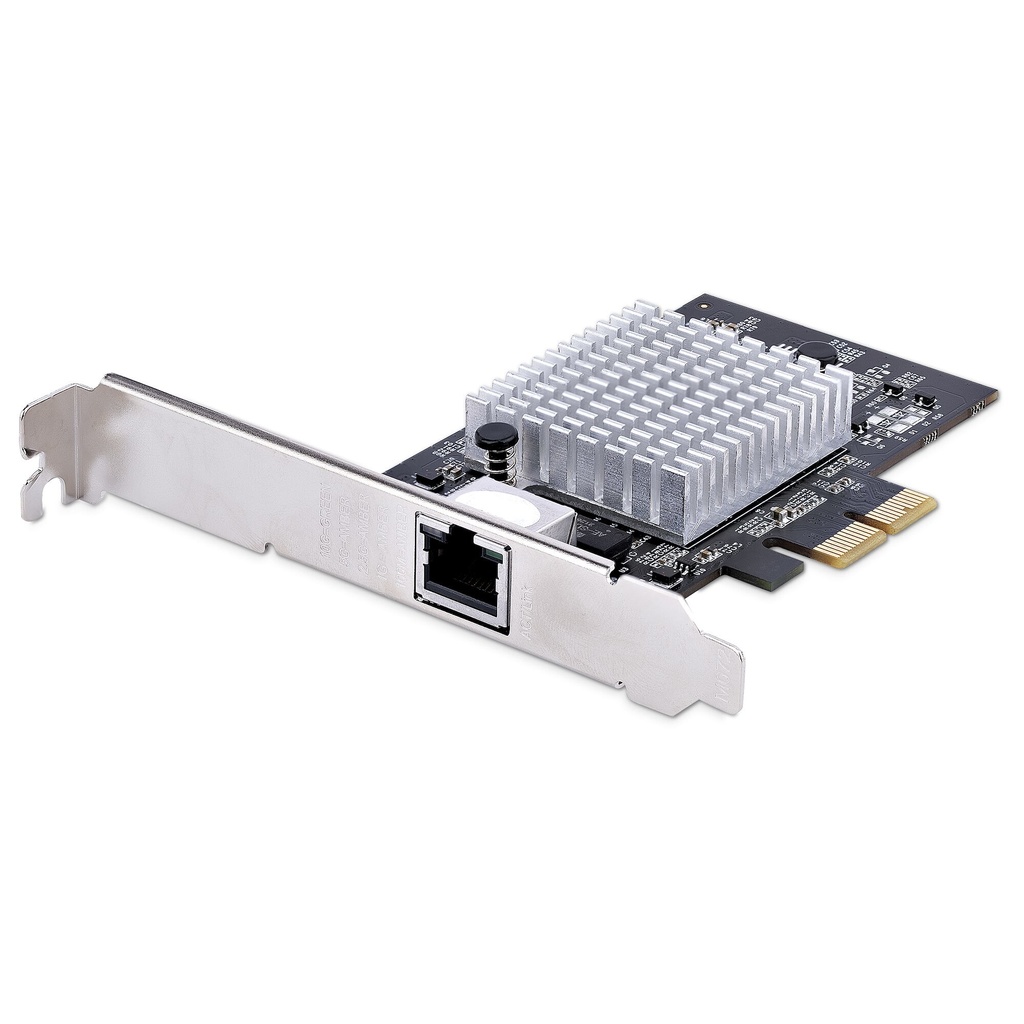

StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, Six-Speed PCIe Ethernet Card with Jumbo Frame

$338.56 (Incl. GST)

StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, Six-Speed PCIe Ethernet Card w/Jumbo Frame Sup

In stock

SKU: STARTECH.COM_ST10GSPEXNB2 Category:

Print

Description

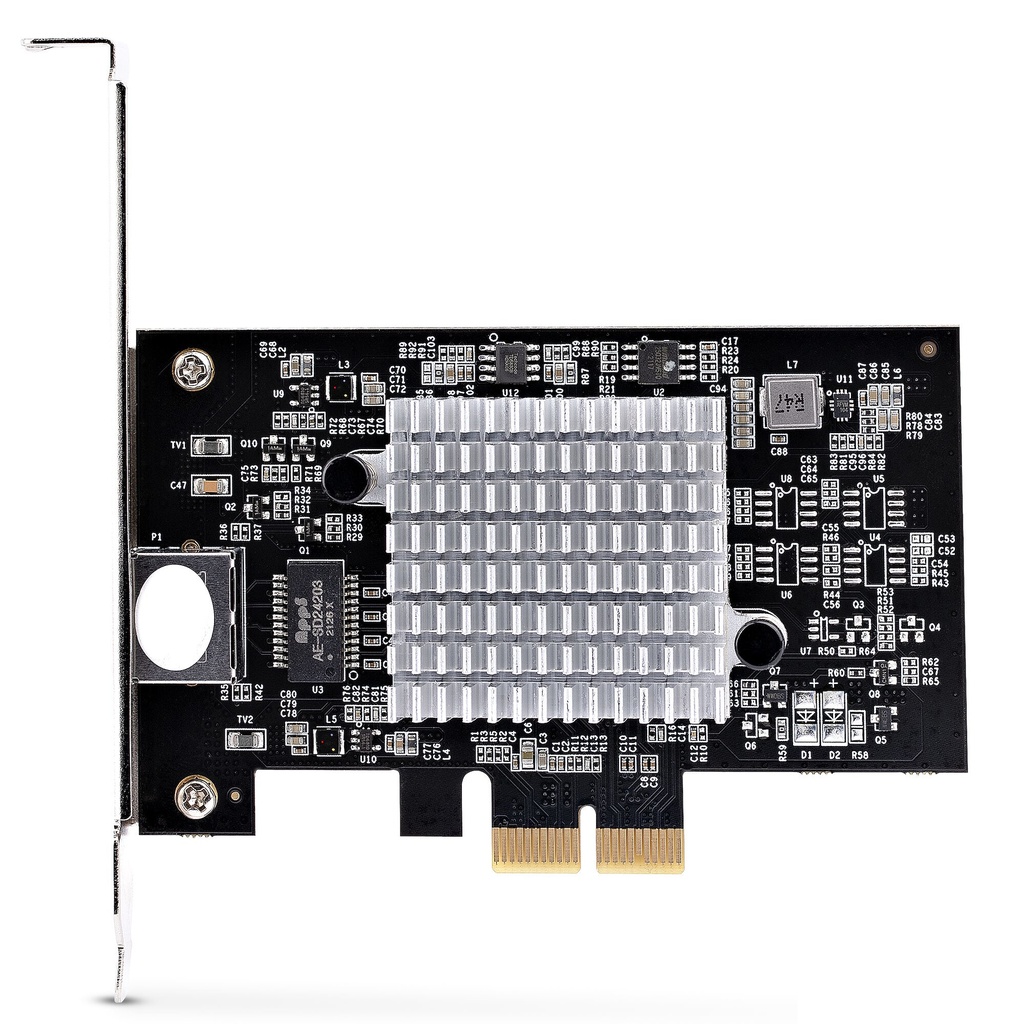

Six-Speed | AVB | PXE Boot | x2 PCIe 3.0 | Marvell AQC113CS

Install this single-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) into a server or computer to enable faster network speeds and enhanced network functionality. This card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps. The variable speeds permit access to legacy hardware. Alternatively, the 10GBASE-T and NBASE-T capabilities ensure compatibility with the latest network switches and network access points manufactured by Cisco®; HPE®; and Juniper®.

Increased Network Speeds

This PCIe network card provides access to increased bandwidth. It reduces network slowdown/degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and when streaming online content.

NBASE-T technology maximizes the capability of Cat5e copper cabling over at distances of up to 100 meters. The Ethernet network card supports a 10 Gbps connection over copper using existing Cat6 (or better) copper cabling.

Enhance Existing Hardware

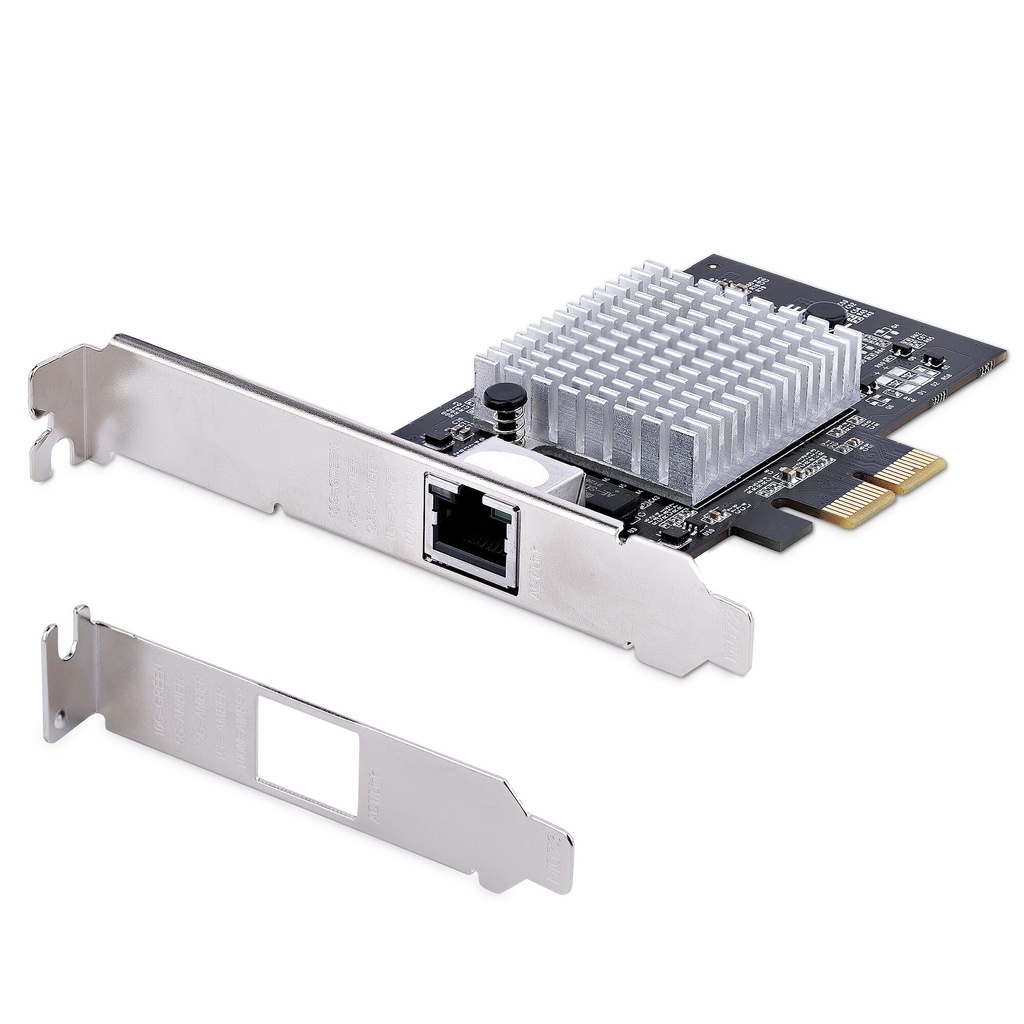

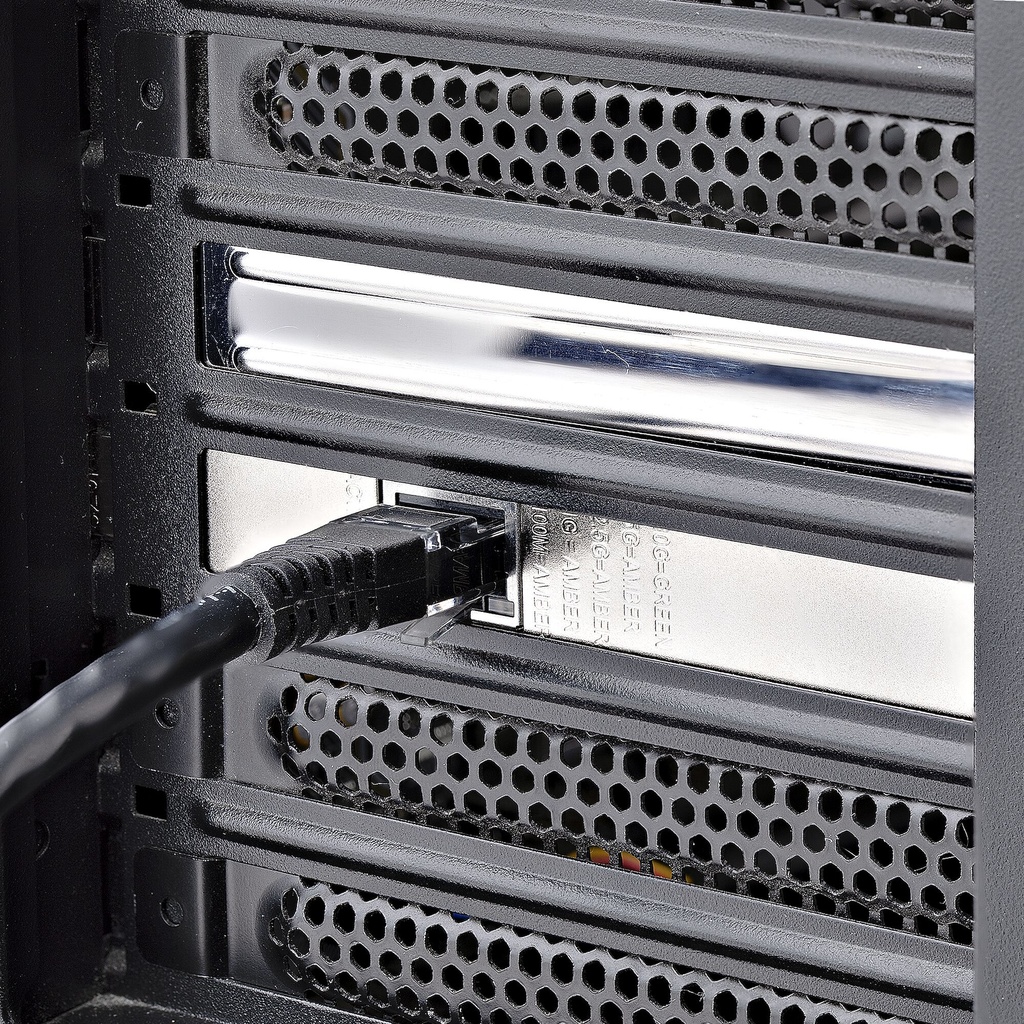

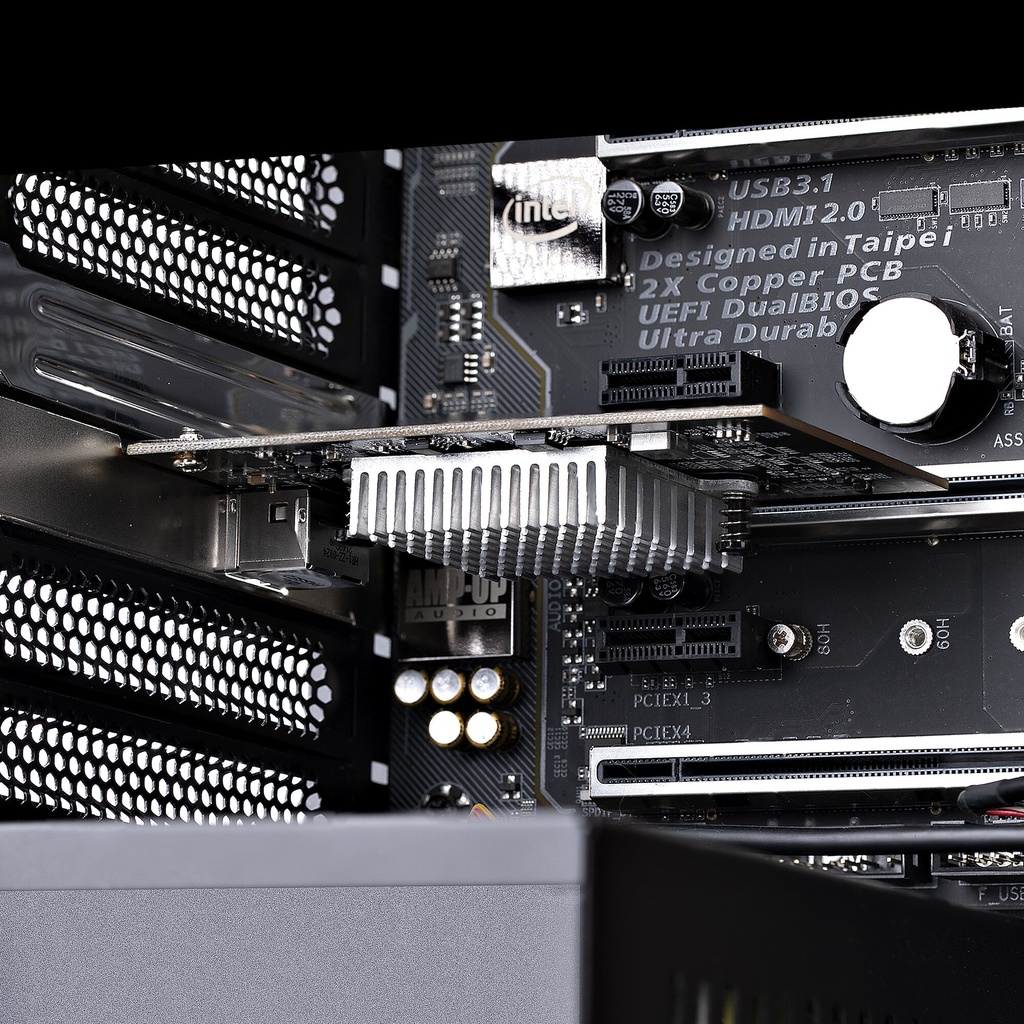

The Network Interface Card connects via an available PCI Express x2 3.0/4.0 (or higher) expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various systems. This card is compatible with Windows, Windows Server, and Linux.

Take advantage of advanced features such as Audio-Video Bridging (AVB), VLAN tagging, 16 K jumbo frame, full-duplex, secure boot, and PXE.

The PCI Express 10G NIC is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage

Additional information

Connectivity technology

Wired

Brand

StarTech.com

Maximum data transfer rate

10000 Mbit/s

Host interface

PCIe

Interface

Ethernet

Ethernet LAN (RJ-45) ports

1

PCI version

3.0

Networking standards

IEEE 1588, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000,2500,5000,10000 Mbit/s

Auto MDIX IEEE

Yes

Full duplex

Yes

Internal

Yes

Component for

PC

LED indicators

Yes

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64

Linux operating systems supported

Yes

Operating temperature (T-T)

0 – 60 °C

Width

107 mm

Depth

121 mm

Height

22 mm

Weight
