Shuttle WLN-M – Realtek WLAN-ac/Bluetooth Combo Kit with M.2 card, cables and external antennas

$112.15 (Incl. GST)

or 6 weekly interest-free payments from $18.69 with Laybuy

IEEE 802.11b/g/n/ac, Bluetooth 4.0, Realtek RTL8821AE

In stock

SKU: SHUTTLE_POZ-WLNM01 Category:

Print

Description

Shuttle WLN-M – Realtek WLAN-ac/Bluetooth Combo Kit with M.2 card, cables and external antennas. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN / Bluetooth. Maximum data transfer rate: 433.3 Mbit/s, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: Green

Universal WLAN-ac / Bluetooth Combo Kit with M.2 card

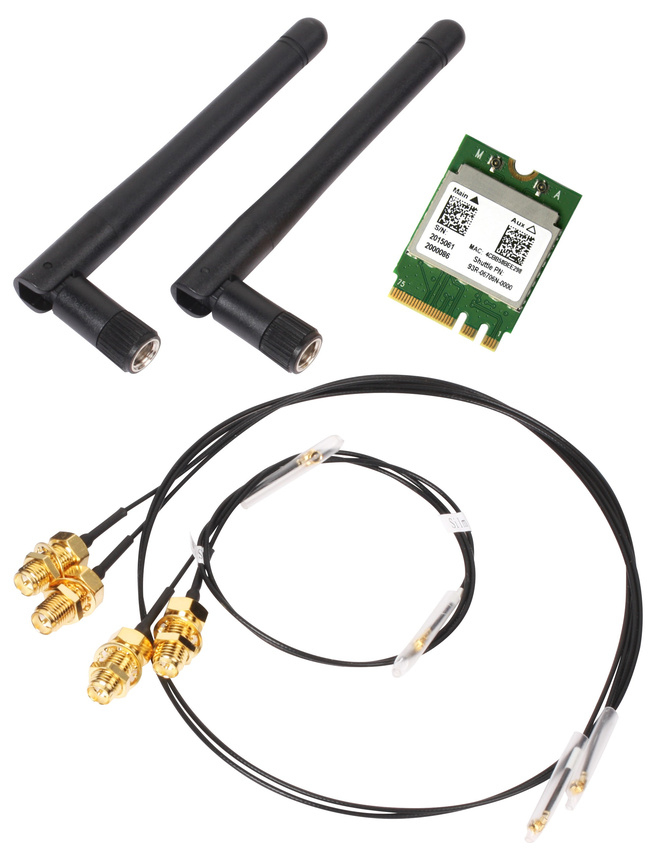

The Shuttle XPC Accessory WLN-M is a wireless LAN kit consisting of a M.2-2230 card, two antennas and appropriate cables. The WLN-M is intended for certain Shuttle barebones of the XPC cube and XPC slim series to equip them with the wireless LAN standard according to IEEE 802.11n/ac at 2.4 / 5 GHz. At the same time, his combo device also supports Bluetooth 4.0.

Additional information

Connectivity technology

Wireless
Brand

Shuttle
Maximum data transfer rate

433.3 Mbit/s
Host interface

PCI Express
Interface

WLAN / Bluetooth
PCI version

1.1
Networking standards

IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n
Internal

Yes
Component for

PC
Chipset

RTL8821AE
Windows operating systems supported

Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported

Yes
Operating temperature (T-T)

0 – 70 °C
Operating relative humidity (H-H)

10 – 80%
Width

26.6 mm
Depth

29.9 mm
Height

2.35 mm
Drivers included

Yes
Storage temperature (T-T)

-20 – 70 °C
Harmonized System (HS) code

85176990
Wi-Fi

Yes
Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard

Wi-Fi 5 (802.11ac)
Wi-Fi standards

Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Product colour

Green
Quantity

1
Quick start guide

Yes
Security algorithms

AES, WAPI, WPA, WPA2
Antenna

Yes
WLAN data transfer rates supported

433 Mbit/s
PCI Card form factor

Full-height
Country of origin

China
Compatible products

NC02U, NC03U, NC10U, DH110(SE), DH270, DH310(S), DH310V2, DH370, DH410(S), DH470, DH610(S), DH670, XH110(V), XH110G, XH270, XH310(V), XH310R(V), XH410G, XH510G(2), XH610(V), XC60J, DX30, DL10J, DL20N(6), DH02Ux, SH110R4, SZ170R8V2, SZ270R8, SZ270R9, SH310R4(V2), SH370R6(V2)(Plus), SH370R8, SH510R4, SH570R6 (Plus), SH570R8, SW580R8, EN01J3, EN01J4, EN01E, EN01B
Bluetooth version

4.0
Bandwidth (first)

2.4 GHz
Bandwidth (second)

5 GHz
Antenna length

10.8 cm
Antenna diameter

1 cm
Detachable antenna(s)

Yes
Antennas quantity

2
Bandwidth note

80 MHz
