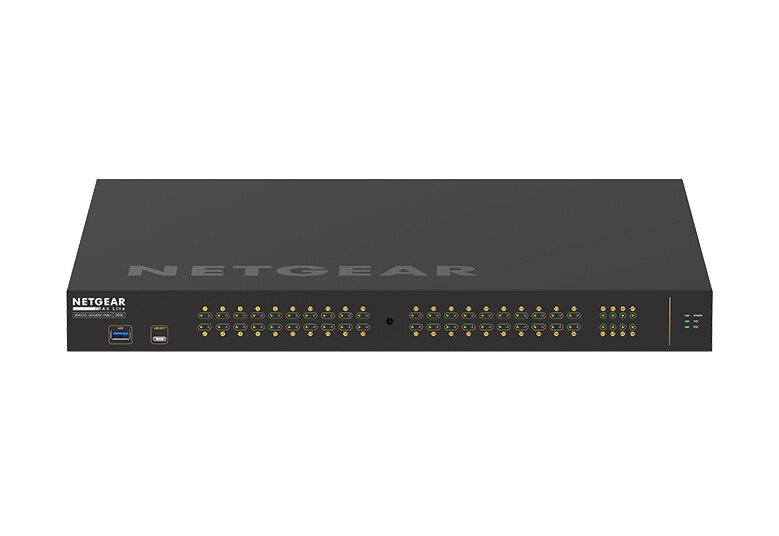

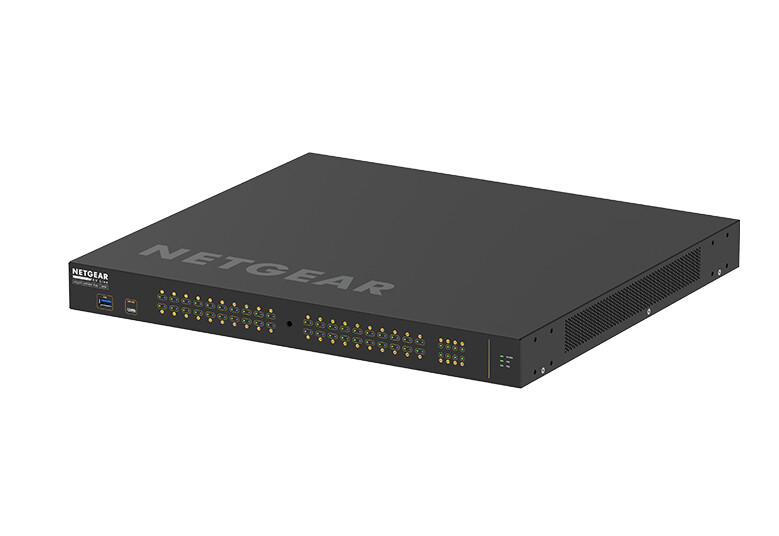

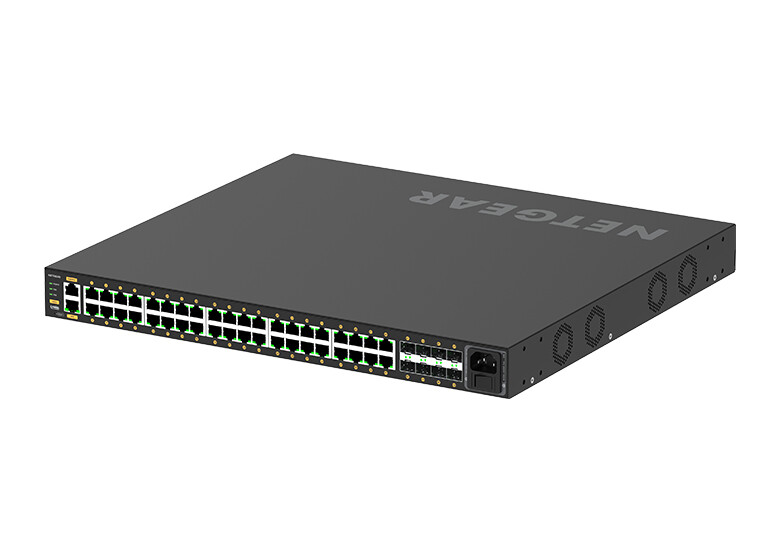

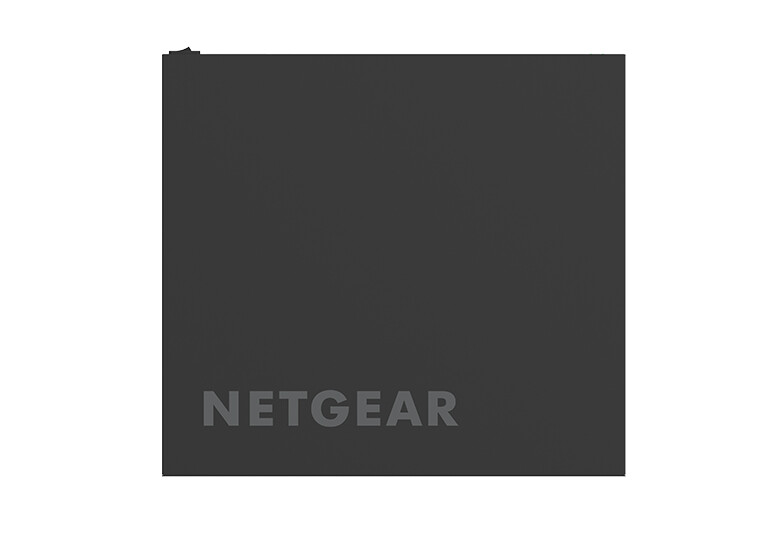

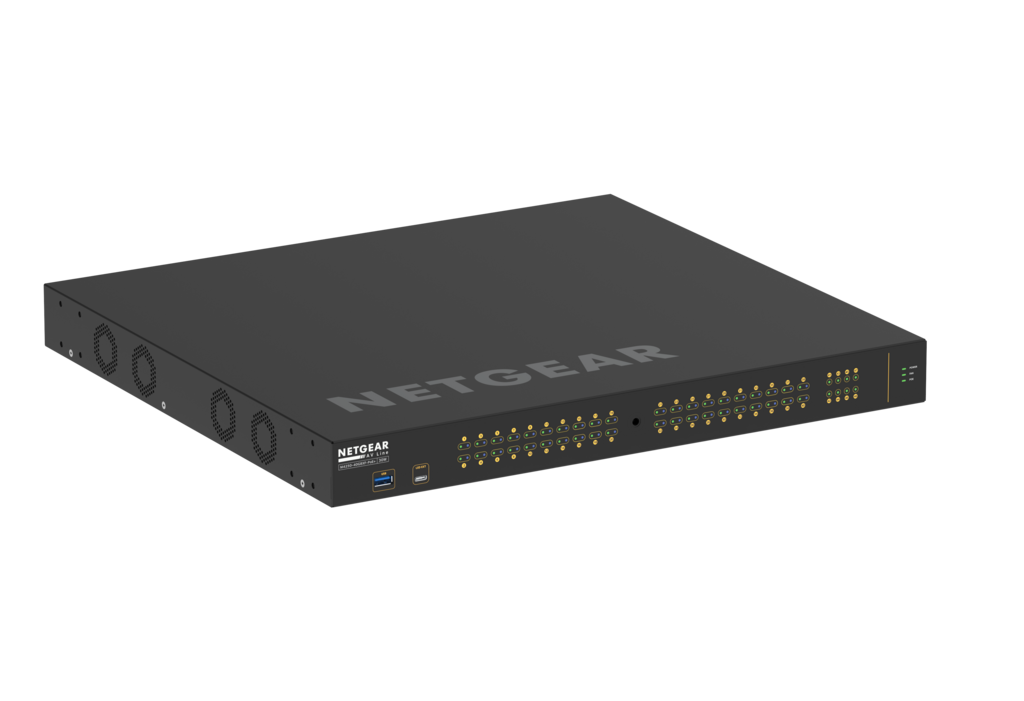

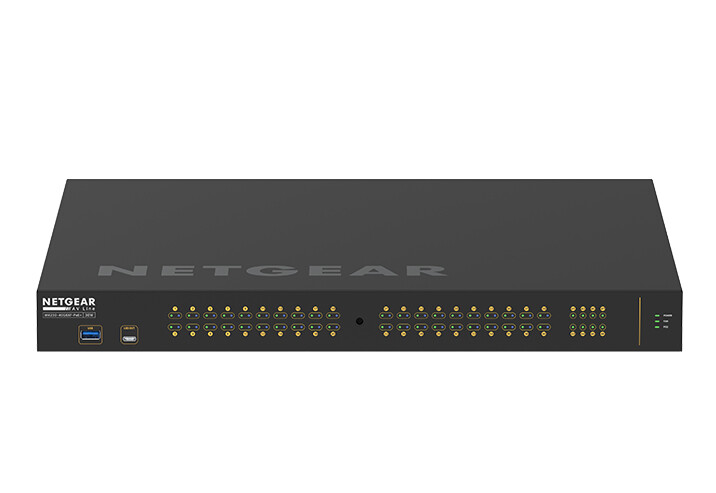

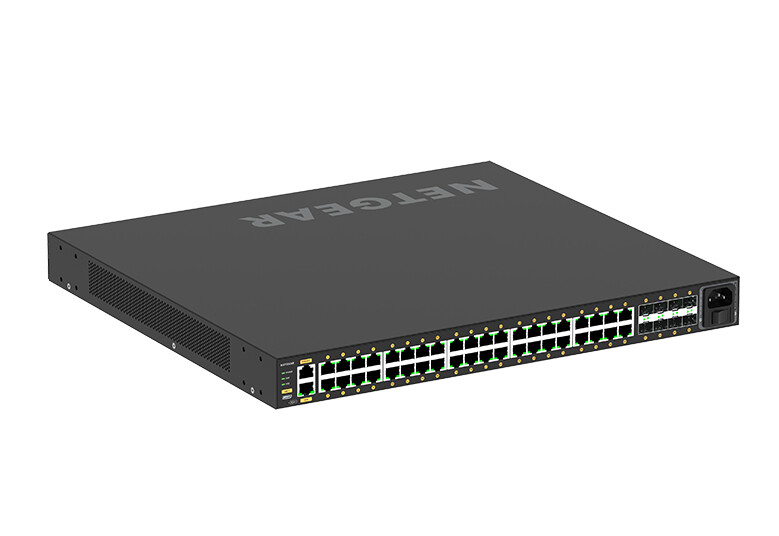

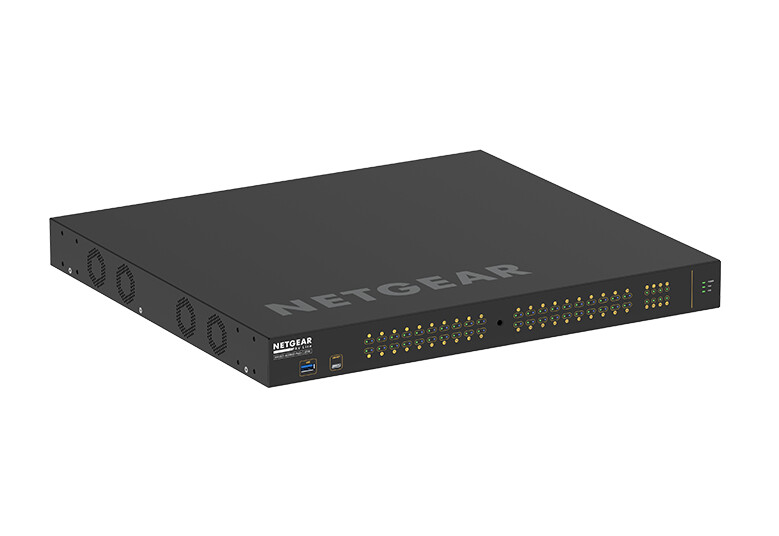

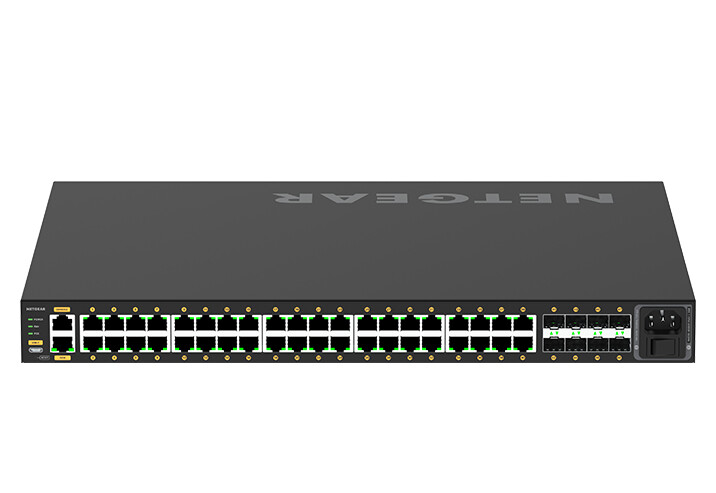

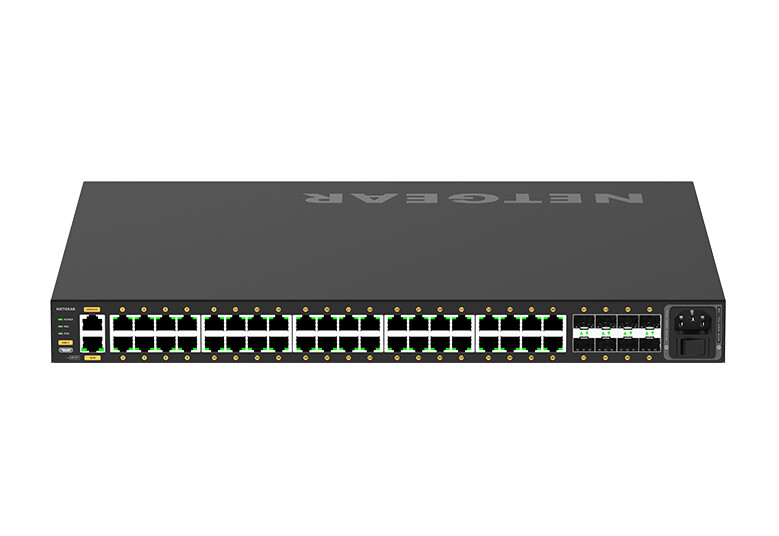

NETGEAR M4250-40G8XF-PoE+ Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

$7,467.62 (Incl. GST)

240 Gbps, 40x 1G RJ-45 PoE+, 8x 10G SFP+, USB C, RJ45-DB9, 440×43.2×400

In stock

SKU: NETGEAR_GSM4248PX-100AJS Category:

Print

Description

Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!

Pre-configured for out-of-the-box use
NETGEAR IGMP Plus enables instant multicast functionality for most AV over IP installations

Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles

Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license

Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed

Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.

Additional information

Basic switching RJ-45 Ethernet ports quantity

40

Brand

Netgear

Switch type

Managed

Quality of Service (QoS) support

Yes

Product colour

Black

Power over Ethernet (PoE)

Yes

Weight

6.31 kg

Jumbo frames support

Yes

Packet buffer memory

32 MB

Noise level

69 dB

Switch layer

L2/L3/L4

Web-based management

Yes

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Networking standards

IEEE 802.1Qav, IEEE 802.1ak, IEEE 802.1as, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt

10G support

Yes

MAC address table

16000 entries

Switching capacity

240 Gbit/s

Multicast support

Yes

Rack mounting

Yes

Form factor

1U

LED indicators

Yes

Total Power over Ethernet (PoE) budget

960 W

Width

440 mm

Depth

440 mm

Height

43.2 mm

SFP+ module slots quantity

8

DHCP features

DHCP relay, DHCP server, DHCPv6 server

IGMP snooping

Yes

Number of VLANs

4000

VLAN support

Yes

Console port

RJ-45/USB Type-C

Throughput

178.56 Mpps

Security algorithms

SNMP

Power over Ethernet plus (PoE+) ports quantity

40

Virtual LAN features

Private VLAN

Jumbo frames

12000

User guide

Yes

Rack mount kit

Yes

Latency (1 Gbps)

2.78 µs

Latency (10 Gbps)

0.73 µs

Power source

PoE
