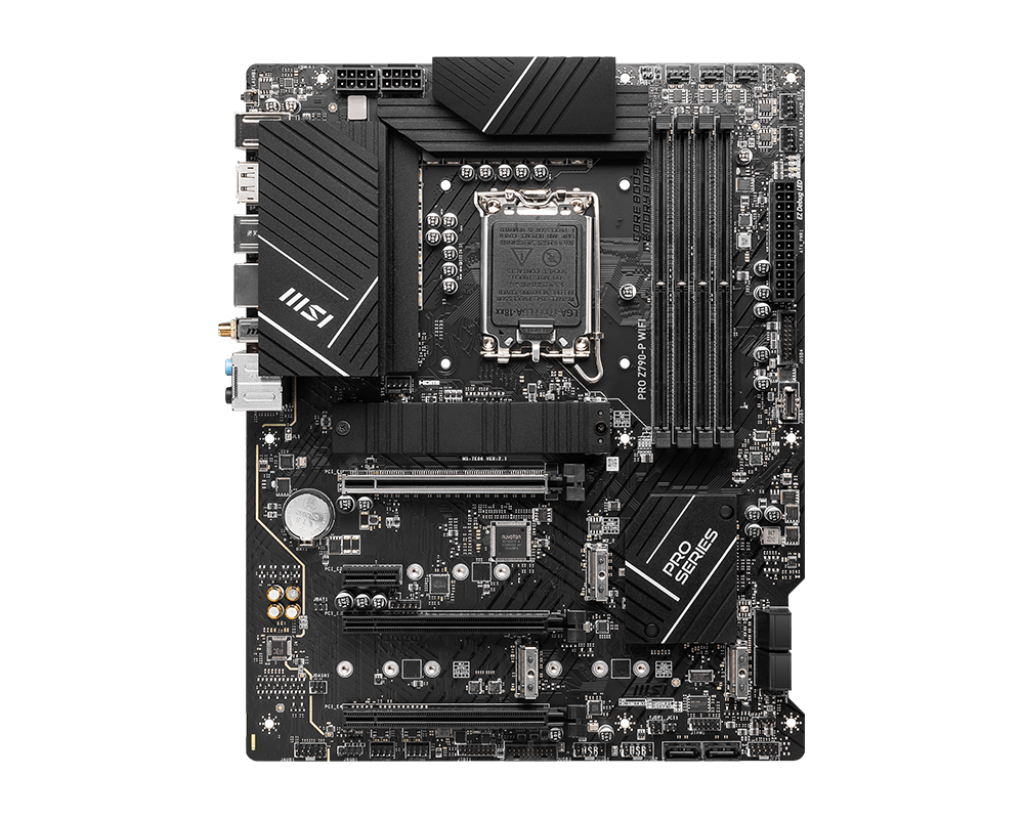

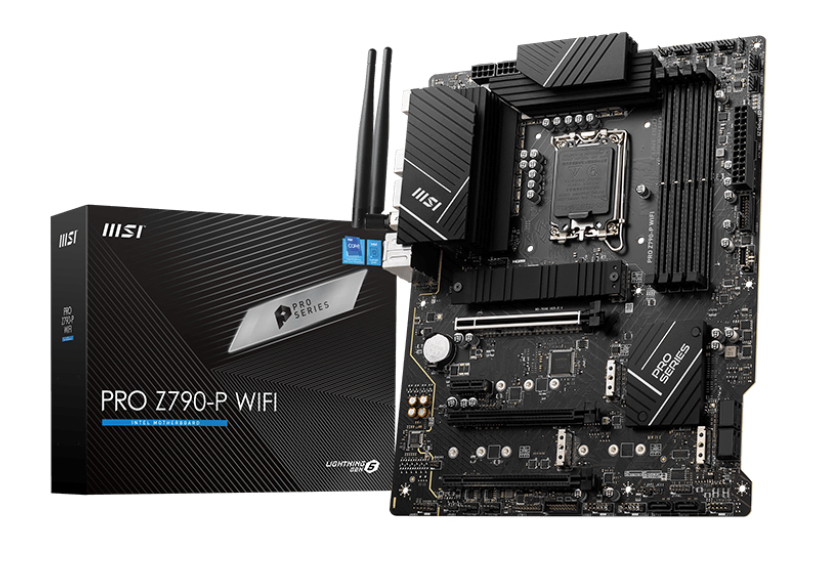

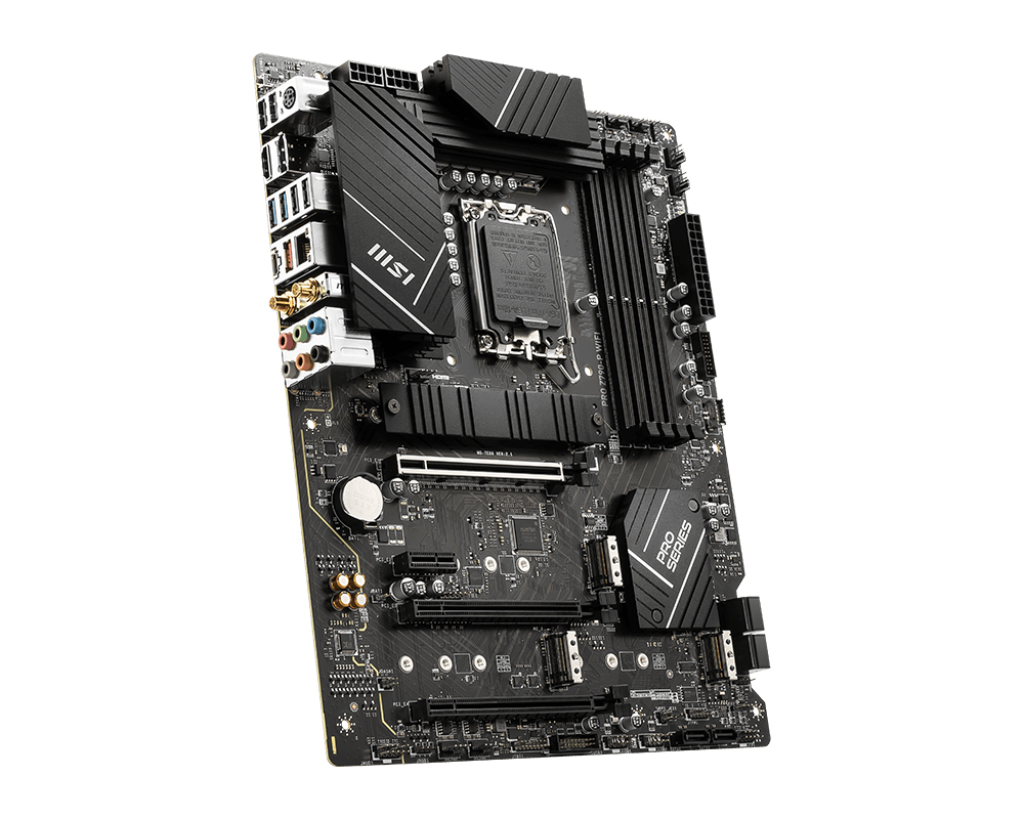

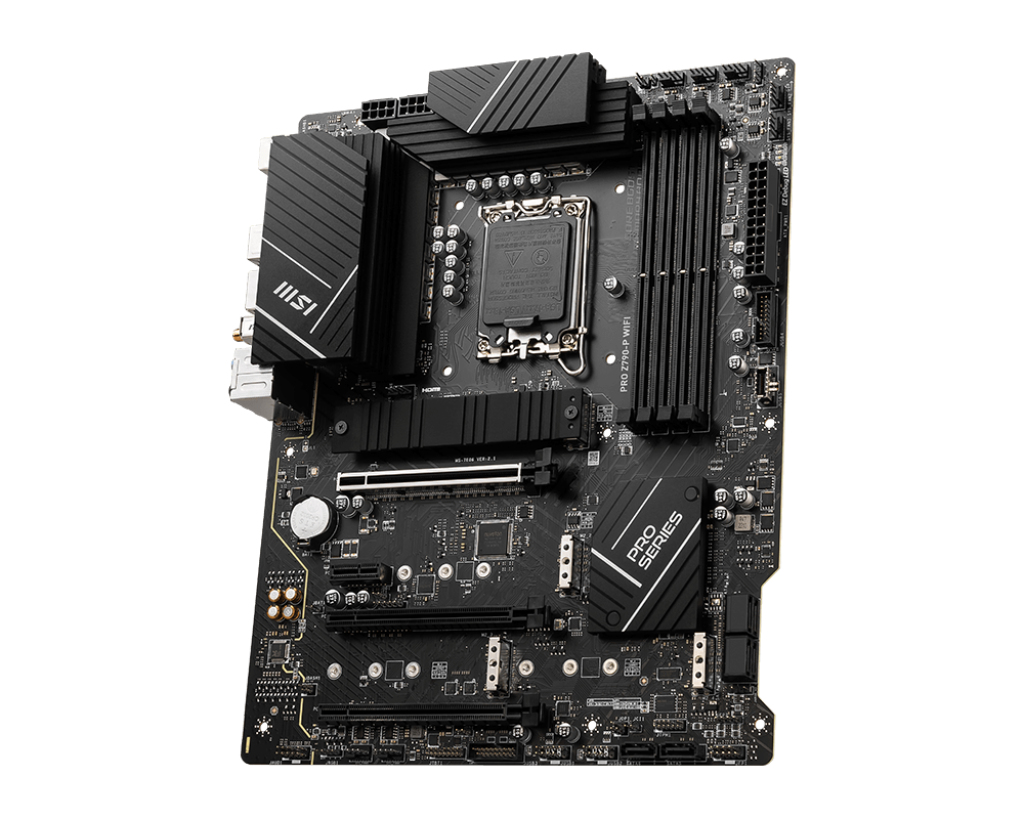

MSI PRO Z790-P WIFI motherboard Intel Z790 LGA 1700 ATX

$451.03 (Incl. GST)

LGA 1700, Z790, 4x DDR5, Wi-Fi 6E, 1x HDMI, 1x DisplayPort, 2.5G LAN, ATX, UEFI AMI BIOS

In stock

SKU: MSI_PRO Z790-P WIFI Category:

Print

Description

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

Additional information

Processor manufacturer

Intel
Brand

MSI
Processor socket

LGA 1700
Compatible processor series

Intel® Celeron®, Intel® Pentium® Gold
Supported memory types

DDR5-SDRAM
Maximum internal memory

128 GB
ECC

No
Supported memory clock speeds

4800,5000,5200,5400,5800,6000,6400,6600,6800,7000 MHz
Supported storage drive interfaces

M.2, PCI Express
RAID levels

0, 1, 5, 10
On-board graphics adapter

No
USB 2.0 connectors

4
USB 2.0 ports quantity

4
Ethernet LAN (RJ-45) ports

1
Wi-Fi

Yes
Ethernet LAN

Yes
Ethernet interface type

2.5 Gigabit Ethernet
Component for

PC
Motherboard chipset

Intel Z790
Supported processor sockets

LGA 1700
Number of memory slots

4
Non-ECC

Yes
Supported storage drive types

HDD & SSD
USB 3.2 Gen 1 (3.1 Gen 1) connectors

4
Number of SATA III connectors

6
Front panel audio connector

Yes
Front panel connector

Yes
TPM connector

Yes
RGB LED pin header

Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2
Storage drives installed

1
Motherboard form factor

ATX
Motherboard chipset family

Intel
Audio chip

Realtek ALC897
Windows operating systems supported

Windows 10 x64, Windows 11 x64
Number of M.2 (M) slots

4
BIOS type

UEFI AMI
BIOS memory size

256 Mbit
Width

304.8 mm
Depth

243.8 mm
Cables included

SATA
DisplayPorts quantity

1
S/PDIF out port

Yes
Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Bluetooth

Yes
Bluetooth version

5.3
Audio output channels

7.1 channels
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1
HDMI version

2.1
Parallel processing technology support

Not supported
Top Wi-Fi standard

Wi-Fi 6 (802.11ax)
System Management BIOS (SMBIOS) version

3.5
USB 3.2 Gen 2 (3.1 Gen 2) connectors

1
DisplayPort version

1.4
Bundled software

DriversMSI CenterIntel Extreme Tuning UtilityCPU-Z MSI GAMINGNorton 360 DeluxeAIDA64 Extreme – MSI Edition
RAID support

Yes
USB 3.2 Gen 2x2 Type-C ports quantity

1
Supported memory clock speed (max)

7000 MHz
Internal storage capacity

10 GB
Product colour

Black
