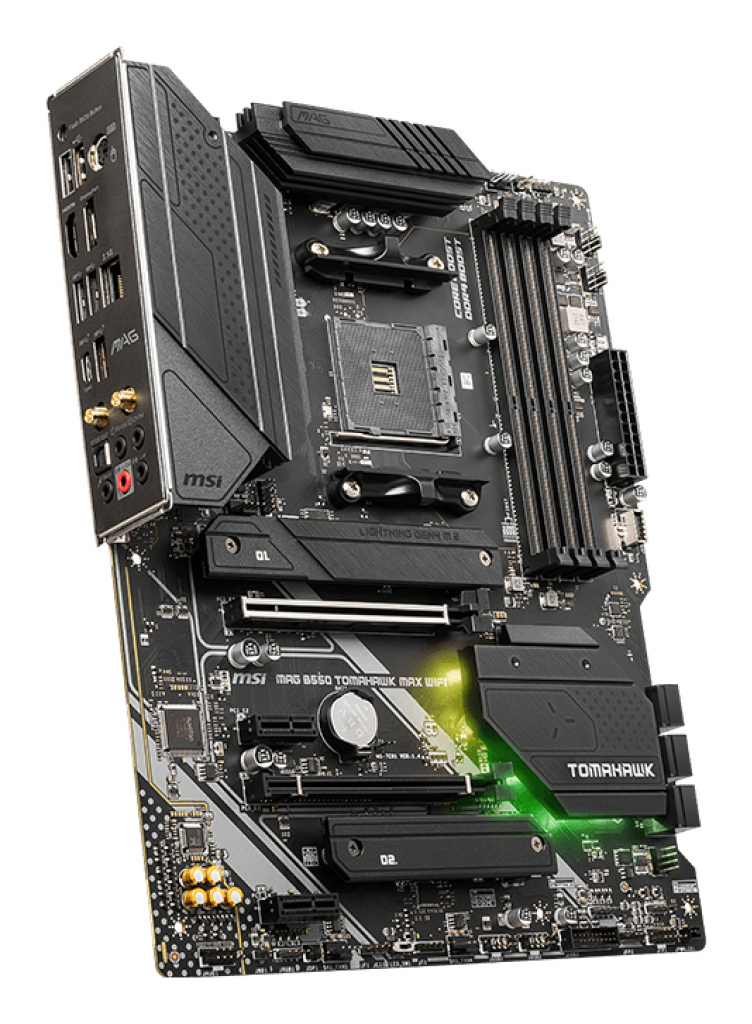

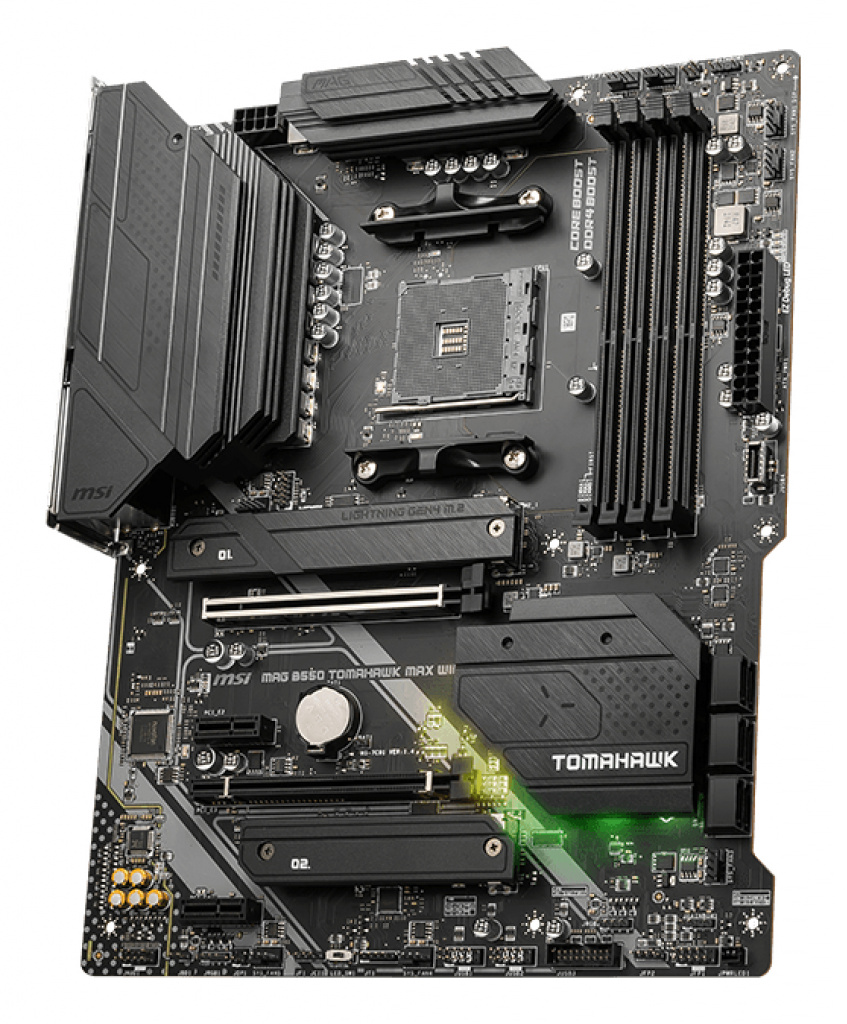

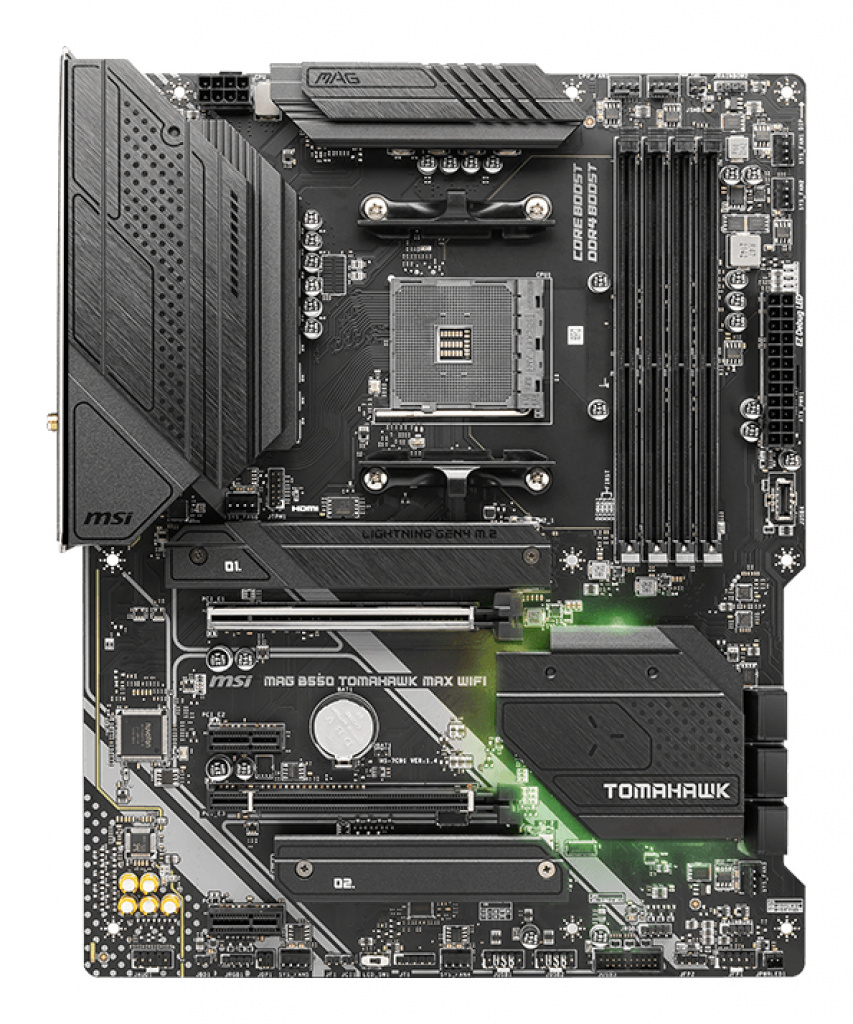

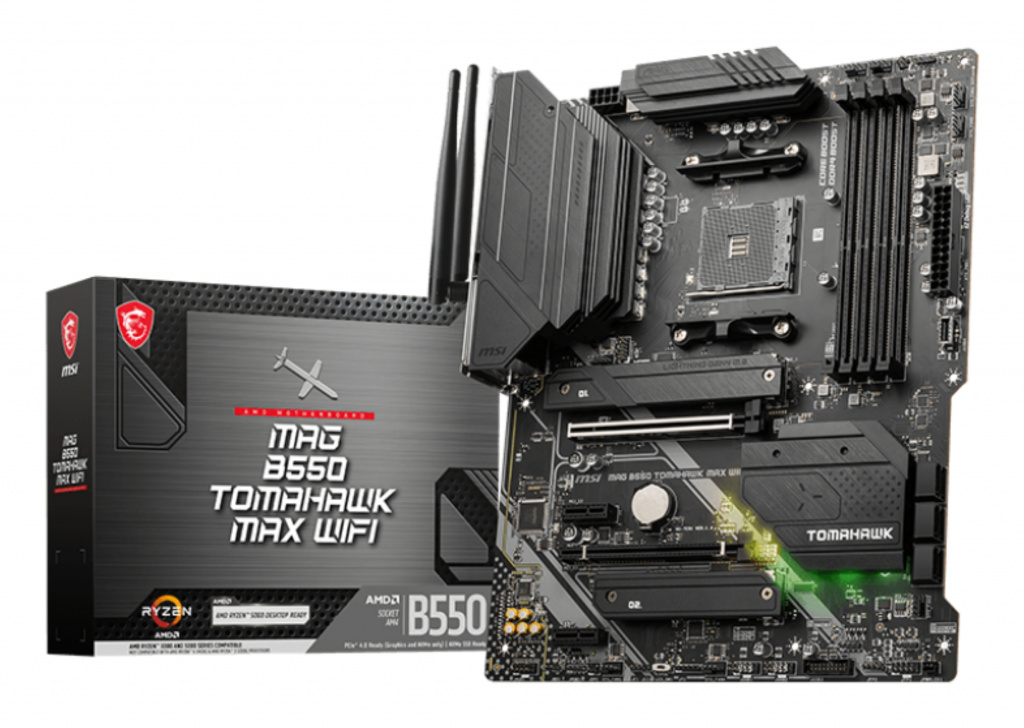

MSI MAG B550 TOMAHAWK MAX WIFI AMD B550 Socket AM4 ATX

$332.52 (Incl. GST)

AMD B550, AM4, 4x DDR4, HDMI, DP, SATA III, M.2, USB 3.2, 1/2.5G LAN, WIFI, PS/2, S/PDIF, ATX, 305×244 mm

In stock

SKU: MSI_MAG B550 TOMAHAWK MAX WIFI Category:

Print

Description

Conquer the Battlefield
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.

LIGHTNING GEN 4 M.2
Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

Additional information

Processor manufacturer

AMD

Brand

MSI

Processor socket

Socket AM4

Compatible processor series

3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9

Supported memory types

DDR4-SDRAM

Maximum internal memory

128 GB

Memory channels

Dual-channel

Supported memory clock speeds

1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4533,4600,4733,5100 MHz

Supported storage drive interfaces

SATA III

RAID levels

0, 1, 10

USB 2.0 connectors

2

USB 2.0 ports quantity

2

Ethernet LAN (RJ-45) ports

2

Wi-Fi

No

Ethernet LAN

Yes

Ethernet interface type

2.5 Gigabit Ethernet, Gigabit Ethernet

Component for

PC

Motherboard chipset

AMD B550

PCI Express x16 (Gen 3.x) slots

1

Supported processor sockets

Socket AM4

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported storage drive types

HDD & SSD

Maximum resolution

4096 x 2160 pixels

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

6

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Chassis intrusion connector

Yes

TPM connector

Yes

12V power connector

Yes

RGB LED pin header

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

HDMI ports quantity

1

PS/2 ports quantity

1

Digital audio optical out

1

LAN controller

Realtek RTL8111H, Realtek RTL8125B

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio chip

Realtek ALC1200

Windows operating systems supported

Windows 10 x64

PCI Express x1 (Gen 3.x) slots

2

Number of M.2 (M) slots

2

Clear CMOS jumper

Yes

Width

305 mm

Depth

244 mm

Cables included

SATA

Drivers included

Yes

Maximum number of SMP processors

1

DisplayPorts quantity

1

S/PDIF out port

Yes

Audio output channels

7.1 channels

Number of chassis fan connectors

6

Number of mounting holes

9

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Parallel processing technology support

2-Way CrossFireX

PCI Express x16 (Gen 4.x) slots

1

Maximum graphics adapter memory

16000 MB

ECC сompatibility

ECC & Non-ECC
