$34.27 (Incl. GST)
ValueRAM 8GB DDR4 2666MHz Module
Out of stock

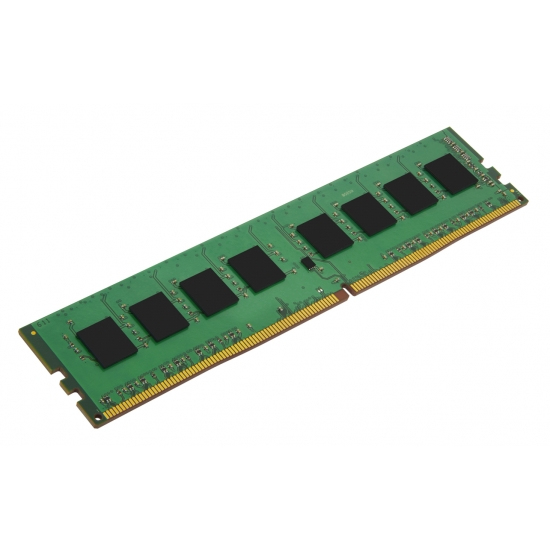

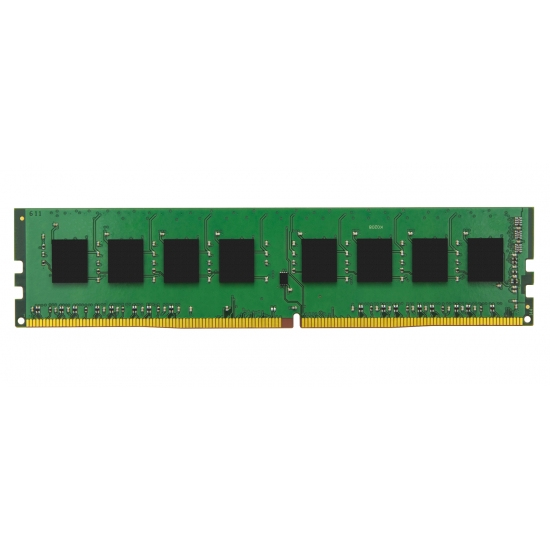

This document describes ValueRAM’s KVR26N19S8/8 is a 1G x 64-bit (8GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of
19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
| Internal memory | 8 GB |
|---|---|
| Brand | Kingston Technology |
| Memory layout (modules x size) | 1 x 8 GB |
| Memory form factor | 288-pin DIMM |
| Memory voltage | 1.2 V |
| Internal memory type | DDR4 |
| Windows operating systems supported | Yes |
| Memory clock speed | 2666 MHz |
| Component for | PC/Server |
| ECC | No |
| Width | 133.3 mm |
| Height | 31.2 mm |
| Product colour | Green |
| Buffered memory type | Unregistered (unbuffered) |
| Country of origin | Taiwan |
| Memory ranking | 1 |
| Module configuration | 1024M x 64 |
| Operating temperature (T-T) | 0 – 85 °C |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| CAS latency | 19 |
| Harmonized System (HS) code | 84733020 |
| SPD profile | Yes |
| Lead plating | Gold |
