$33.43 (Incl. GST)
8 GB, 3200 MHz, DDR4, Non-ECC, CL22, SODIMM, 1Rx16
In stock

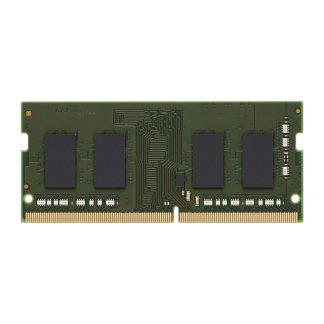

This document describes ValueRAM’s KVR32S22S6/8 as a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin SODIMM uses gold contact fingers.
| Internal memory | 8 GB |
|---|---|
| Brand | Kingston Technology |
| Memory layout (modules x size) | 1 x 8 GB |
| Memory form factor | 260-pin SO-DIMM |
| Memory voltage | 1.2 V |
| Internal memory type | DDR4 |
| Memory clock speed | 3200 MHz |
| Component for | Laptop |
| ECC | No |
| Width | 69.6 mm |
| Height | 30 mm |
| Buffered memory type | Unregistered (unbuffered) |
| Operating temperature (T-T) | 0 – 85 °C |
| CAS latency | 22 |
| Harmonized System (HS) code | 84733020 |
| SPD profile | Yes |
| Storage temperature (T-T) | -55 – 100 °C |
| Row cycle time | 45.75 ns |
| Refresh row cycle time | 350 ns |
| Row active time | 32 ns |
| JEDEC standard | Yes |
| Compliance certificates | RoHS |
