$212.11 (Incl. GST)

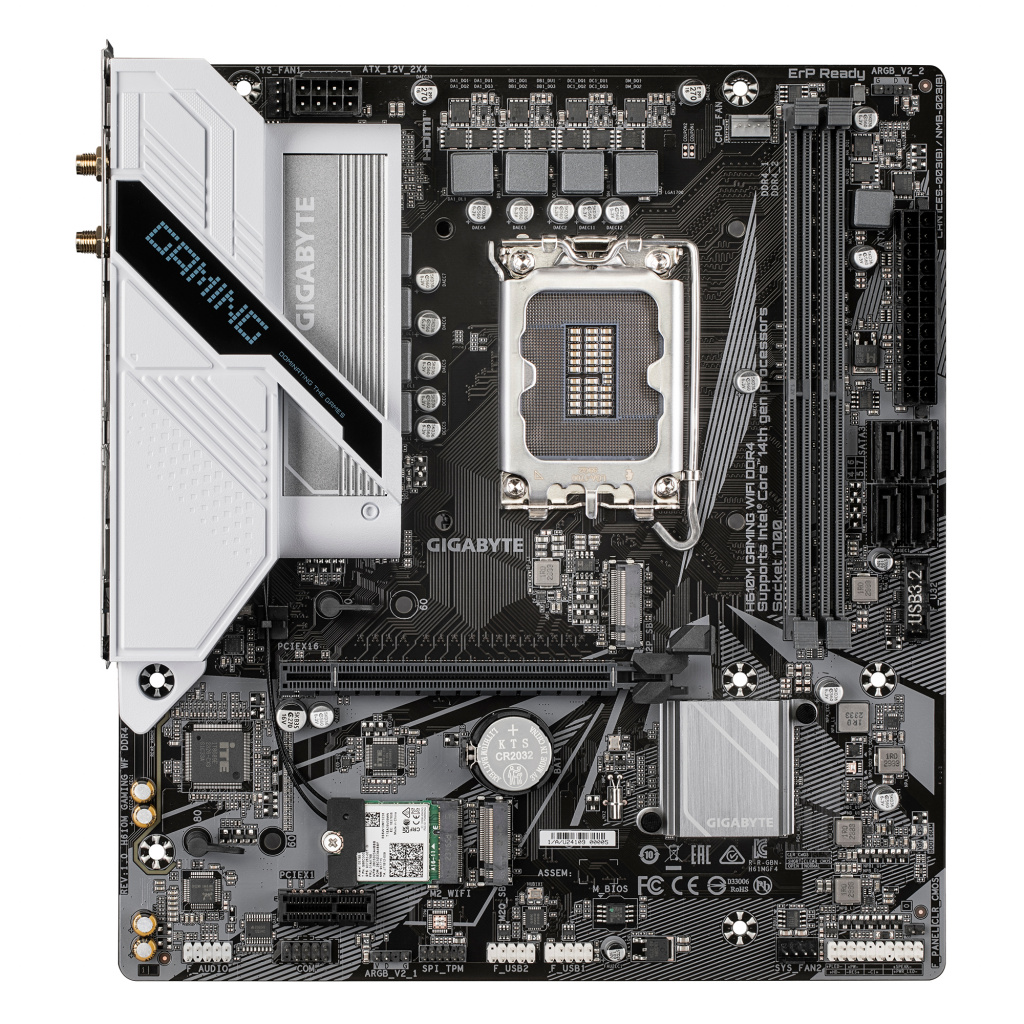

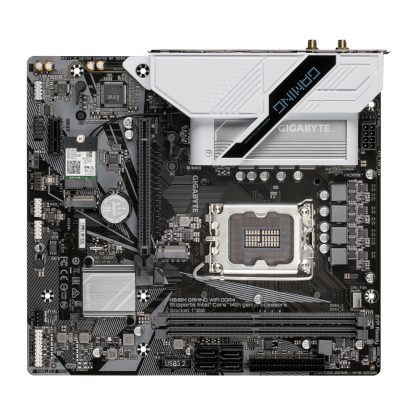

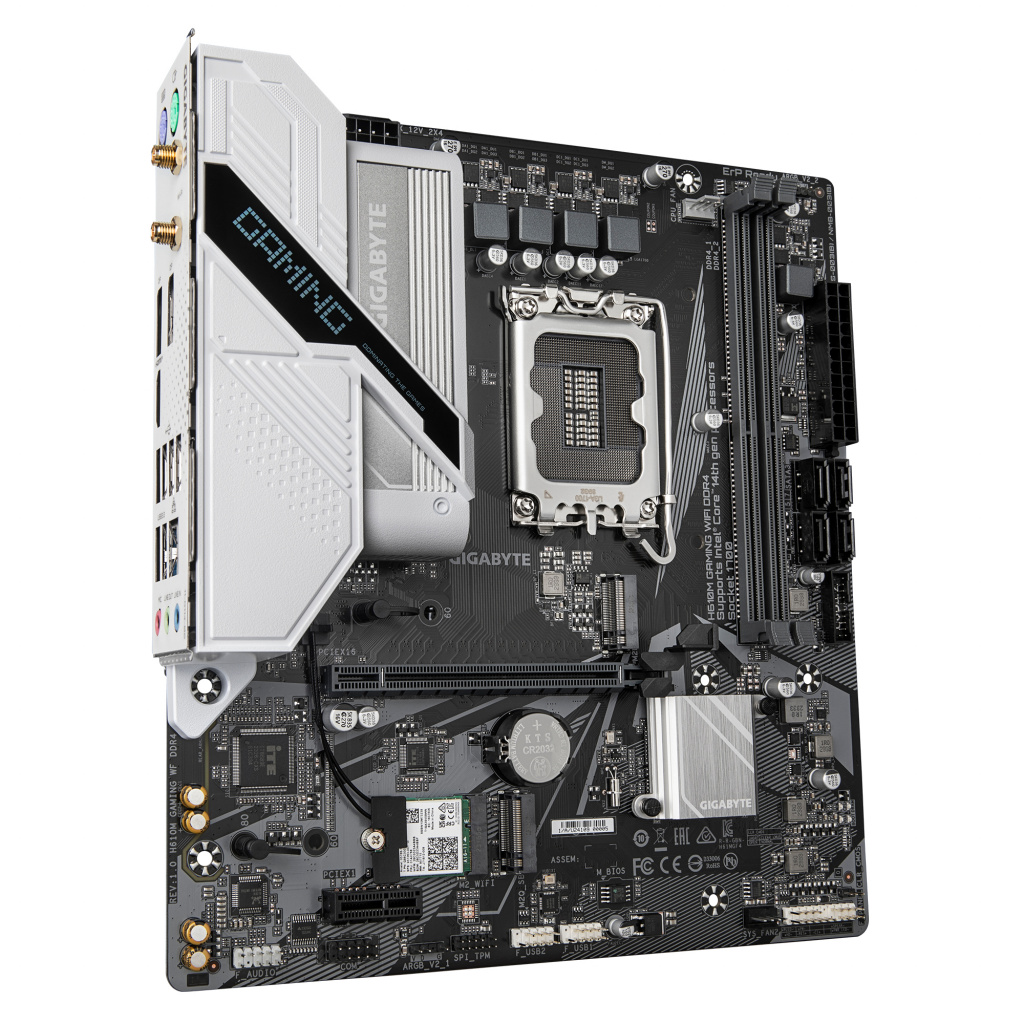

LGA1700, Intel® Core 14th, 2 x DDR4, 1 x HDMI, GbE LAN, Micro ATX, H610 Express
In stock
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
| Processor manufacturer | Intel |
|---|---|
| Brand | Gigabyte |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Maximum internal memory supported by processor | 64 GB |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| ECC | Yes |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200 MHz |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| Total number of SATA connectors | 4 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Component for | PC |
| Motherboard chipset | Intel H610 Express |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Supported processor sockets | LGA 1700 |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Non-ECC | Yes |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Unbuffered memory | Yes |
| Supported storage drive types | HDD & SSD |
| Number of HDDs supported | 4 |
| Storage drives installed | 4096 x 2304 pixels |
| DirectX version | 12.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| Serial port headers | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| DVI-D ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| USB connector type | USB Type-A |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Audio chip | Realtek ALC897 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Active |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Clear CMOS jumper | Yes |
| Width | 244 mm |
| Depth | 220 mm |
| Cables included | SATA |
| DisplayPorts quantity | 2 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Audio output channels | 7.1 channels |
| Parallel processing technology support | Not supported |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Graphics adapter family | Intel |
| Number of storage drives supported | 5 |
| Clear CMOS button | Yes |
| HDCP | Yes |
| Bundled software | Norton Internet Security (OEM version)LAN bandwidth management software |
| Graphics adapter | HD Graphics |
| Height | 35 mm |
| Supported memory clock speed (max) | 3200 MHz |
| Country of origin | China |
| Package weight | 1.18 kg |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Product colour | Brown |
| Products per shipping (inner) case | 1 pc(s) |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells |
