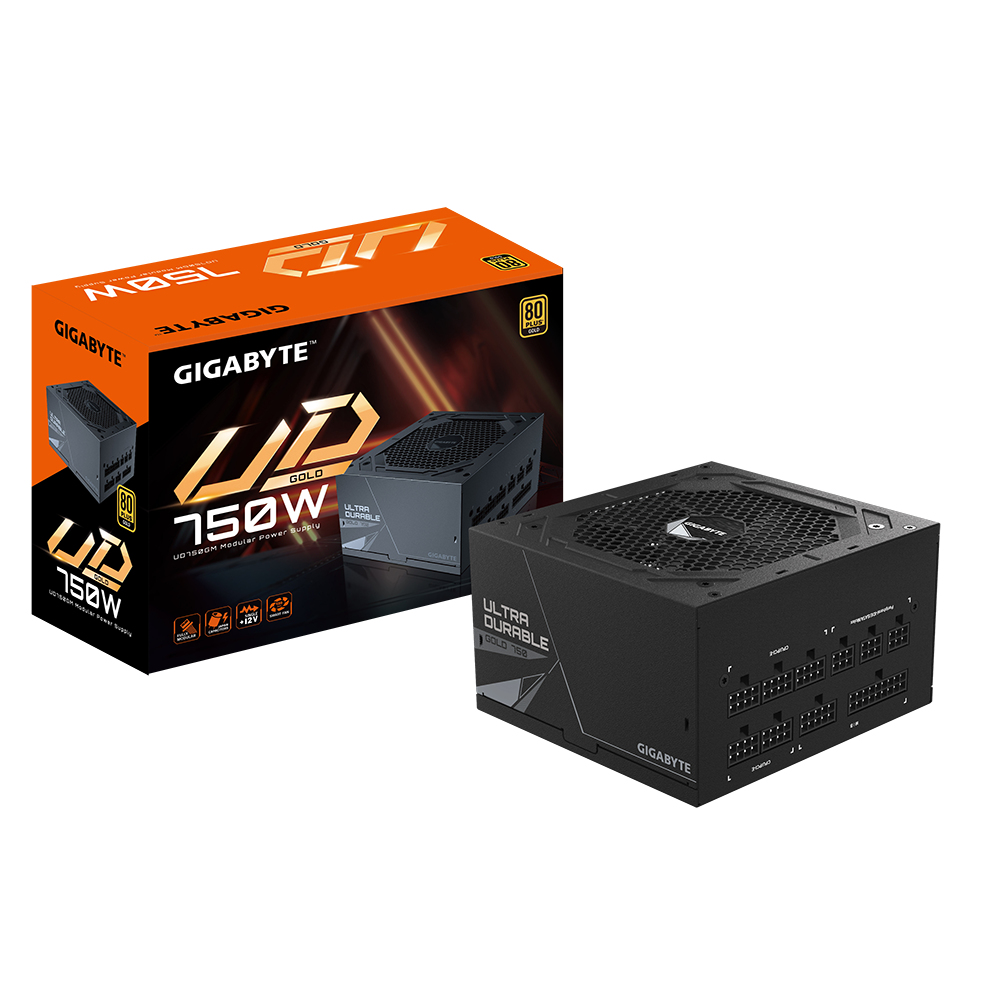

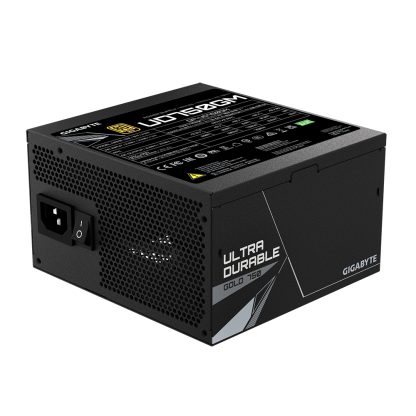

Gigabyte GP-UD750GM power supply unit 750 W 20+4 pin ATX ATX Black

$175.54 (Incl. GST)

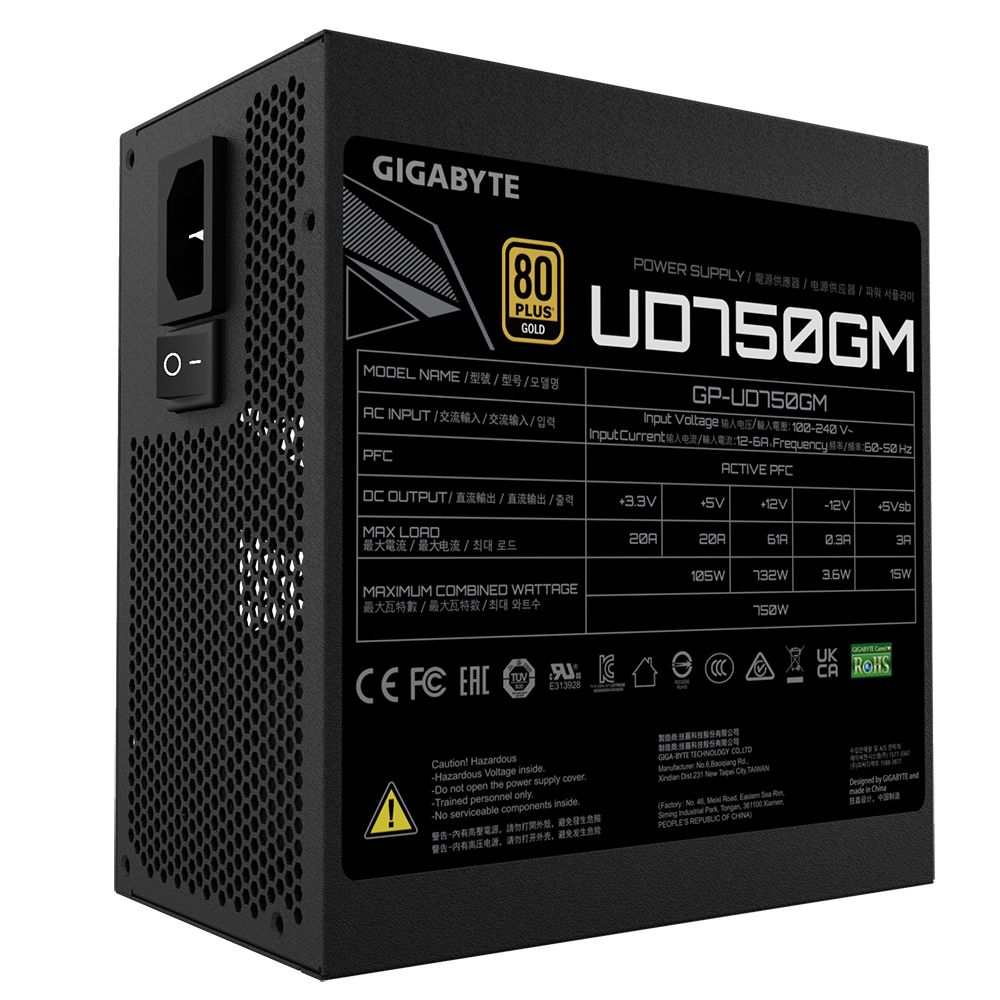

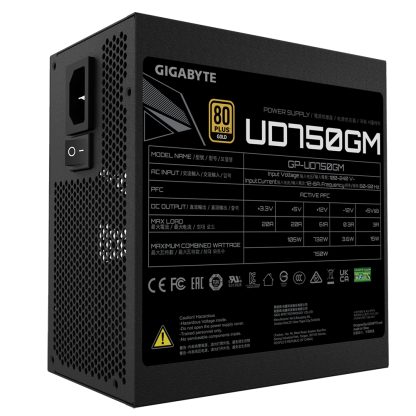

Active PFC, 100-240 Vac, 12-6A, 60-50 Hz, 750W, 120mm Hydraulic Bearing(HYB)fan, 80 PLUS Gold, OVP/OPP/SCP/UVP/OCP/OTP

Out of stock

SKU: GIGABYTE_GP-UD750GM Category:

Print

Description

Gigabyte GP-UD750GM. Total power: 750 W, AC input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,300,450,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA

ULTRA DURABLE
Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.

ENHANCED THERMAL
SOLUTION

Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.

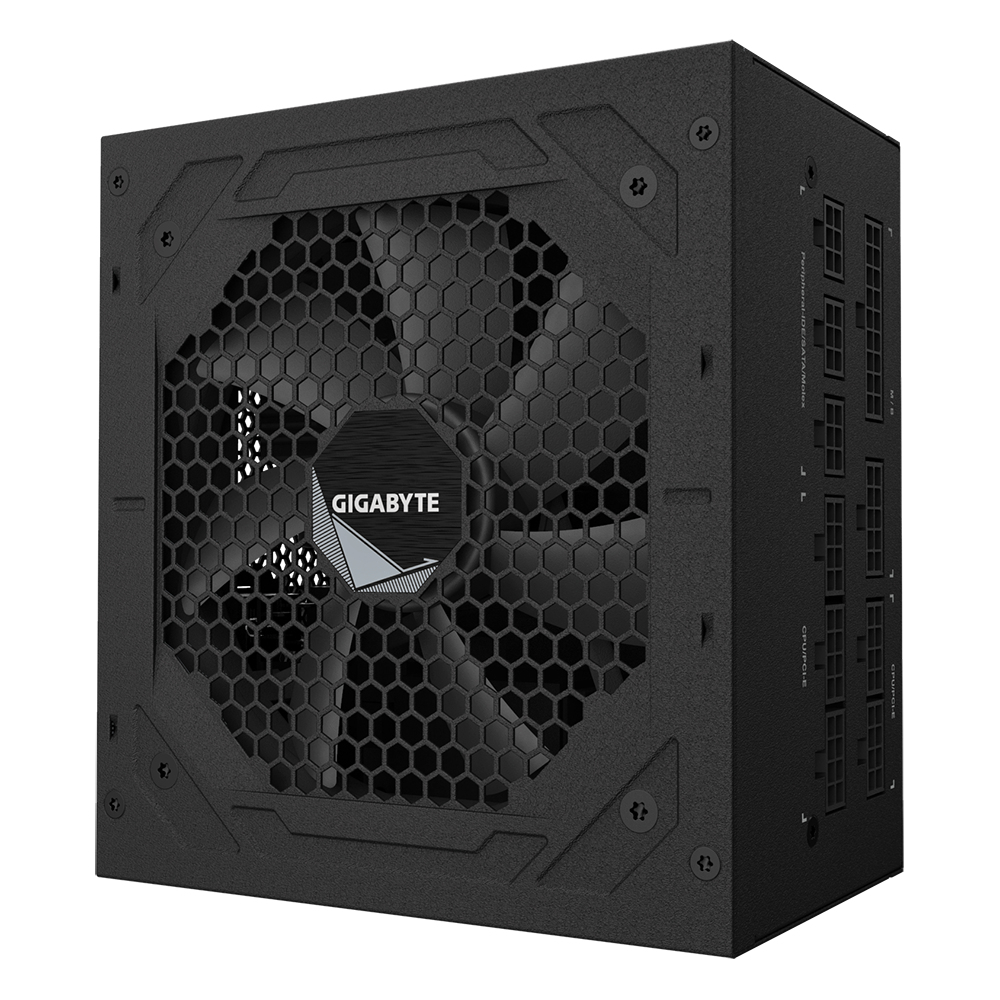

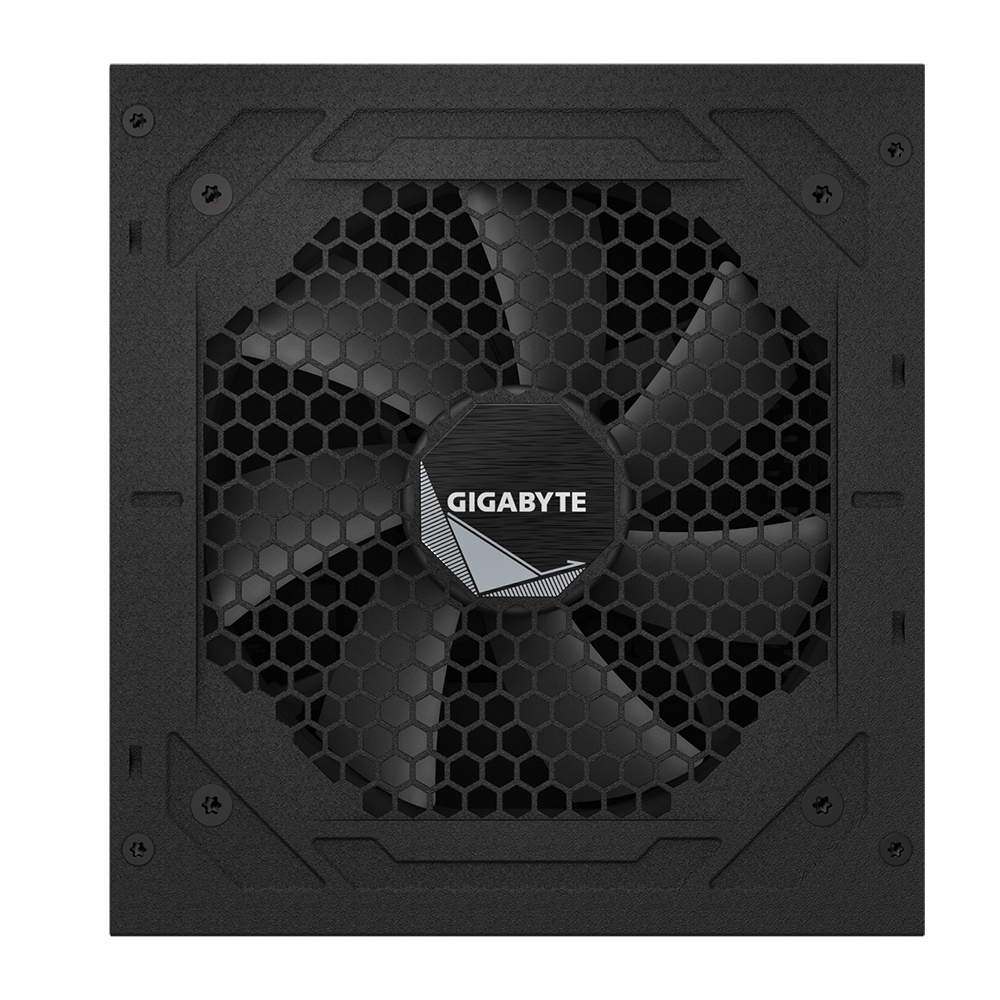

120MM SMART HYDRAULIC
BEARING (HYB) FAN

The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.

PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

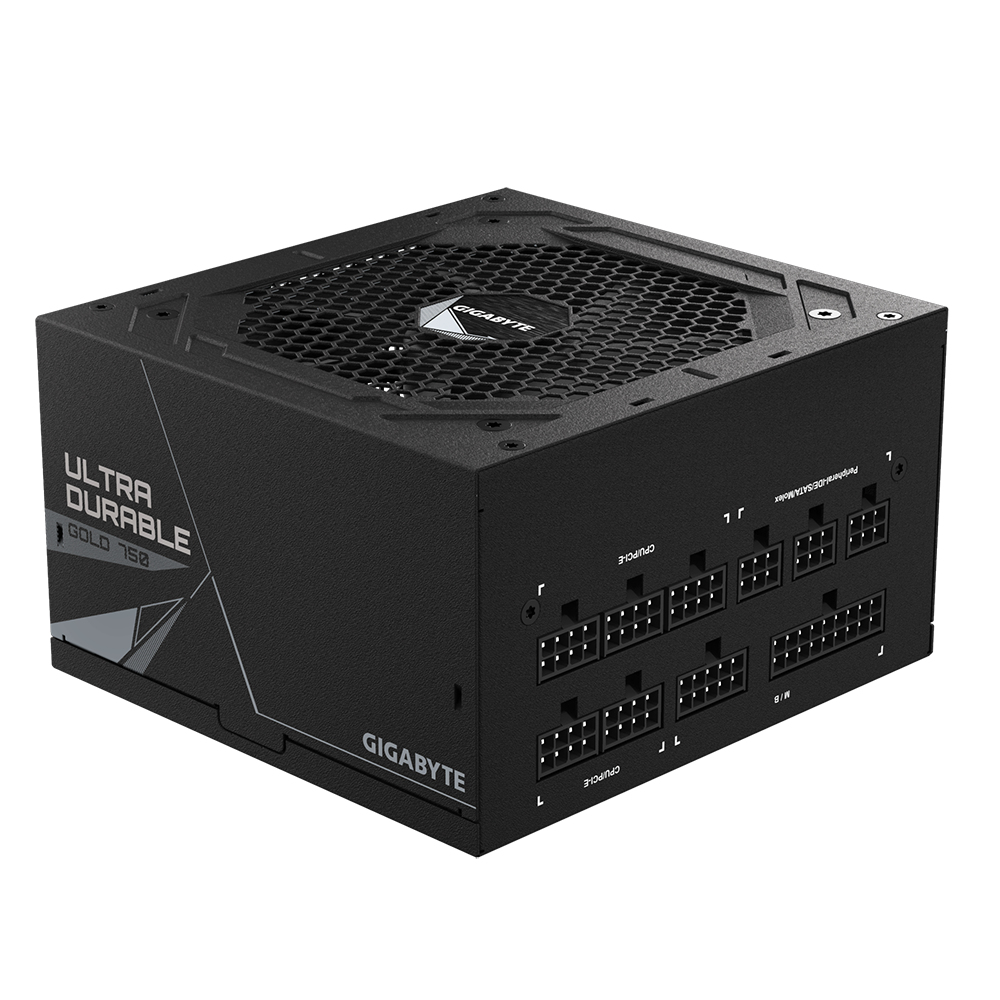

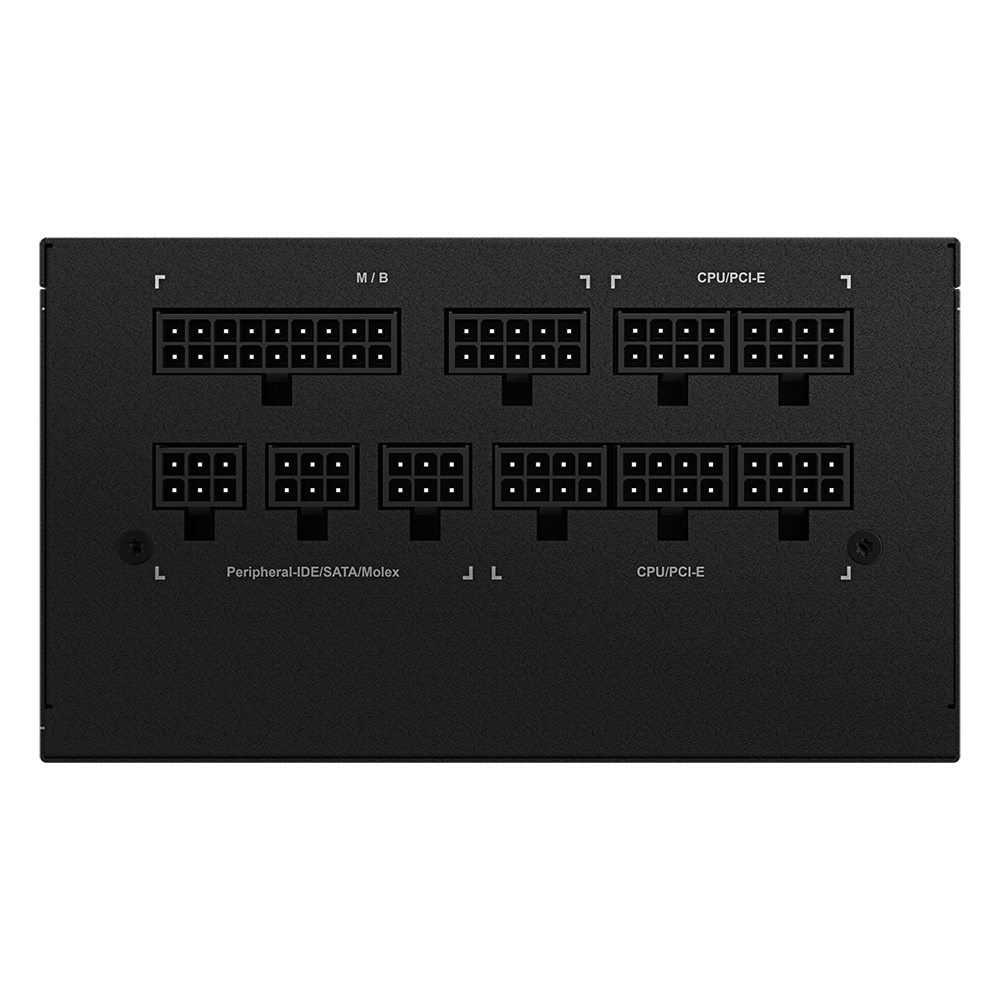

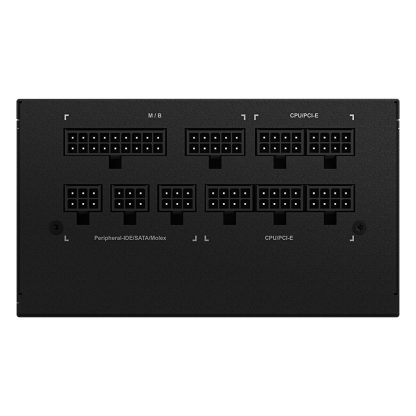

FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.

80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.

SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

COMPACT DESIGN
With the help of engineers’ excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints.

Warranty: 5 years

Additional information

Total power

750 W

Brand

Gigabyte

AC input frequency

50 – 60 Hz

AC input voltage

100 – 240 V

Product colour

Black

Purpose

PC

Width

150 mm

Depth

140 mm

Height

86 mm

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Gold

Harmonized System (HS) code

84733020

Motherboard power connector

20+4 pin ATX

Peripheral (Molex) power connectors (4-pin)

3

Cabling type

Fully-Modular

Maximum video resolution

Active

Number of fans

1 fan(s)

Fan location

Top

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

105 W

Combined power (+5V)

105 W

Max output current (+3.3V)

20 A

Max output current (+5V)

20 A

Max output current (+5Vsb)

3 A

Efficiency

90%

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Motherboard power cable length

61 cm

Number of SATA power connectors

8

SATA power cable length

150,300,450,600 mm

EPS power connector (4+4 pin)

Yes

PCI Express power cable length

60 cm

CPU power connector (4+4 pin)

Yes

Floppy disk drive connector

Yes

Floppy disk drive cable length

15 cm

Fan diameter

12 cm

On/off switch

Yes

Input current

12 A

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

15 W

Max output current (+12V)

61 A

PCI Express power connectors (6+2 pin)

4

CPU power cable length

60 cm

Cables included

CPU, PCIe, Peripheral (Molex), SATA

Hold time

16 ms

Peripheral (Molex) power cable length

120,500 mm

ATX power connector (20+4 pin)

Yes

Floppy drive power connector

1

ATX version

2.31

Bearing technology

HYB

Mean time between failures (MTBF)

100000 h
