$264.22 (Incl. GST)

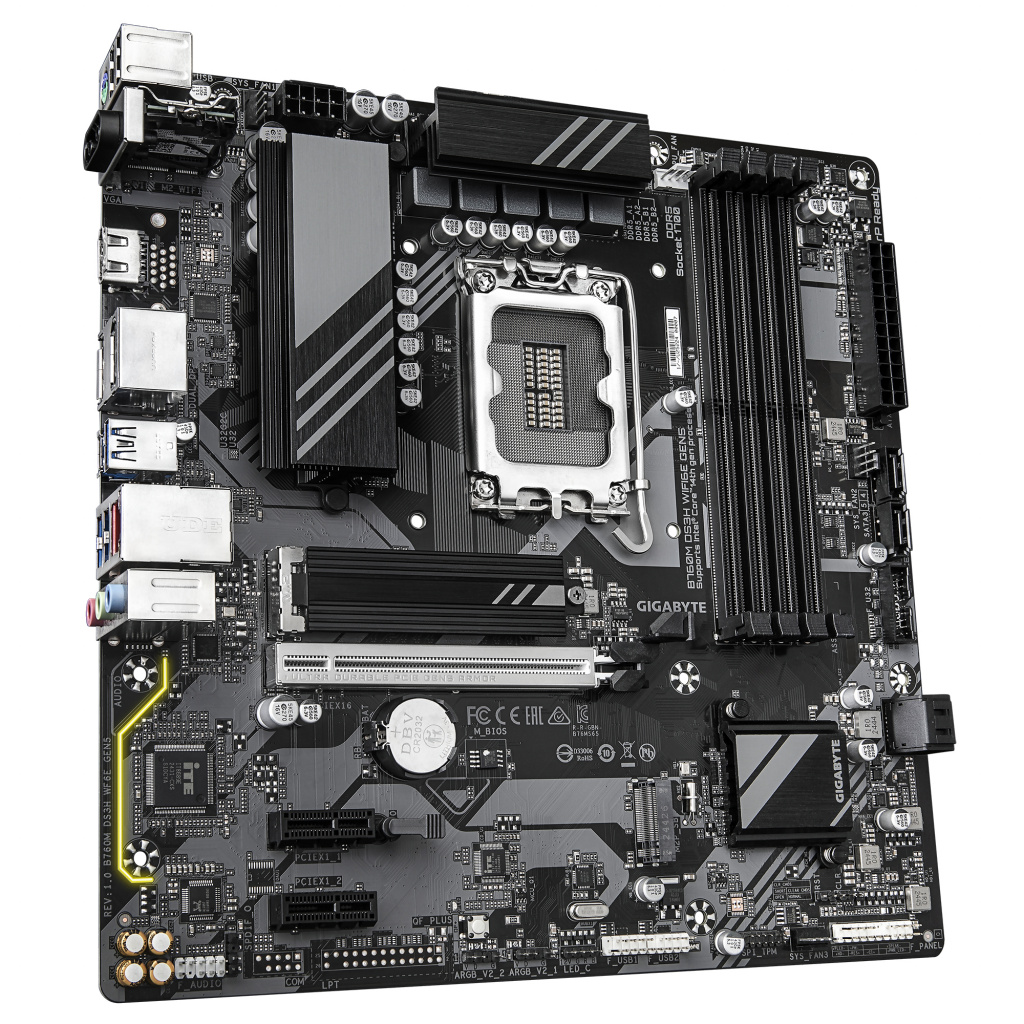

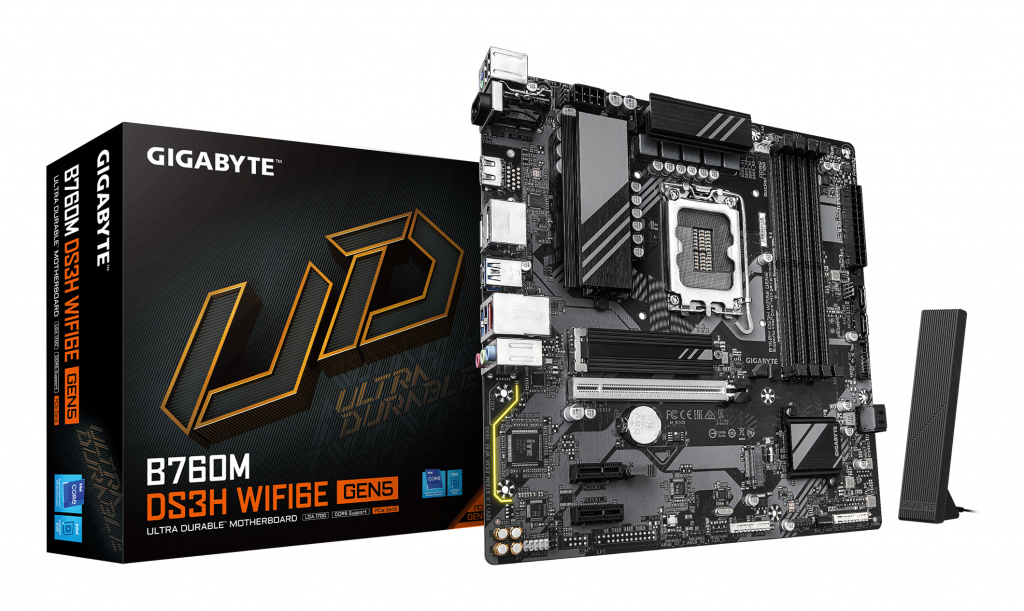

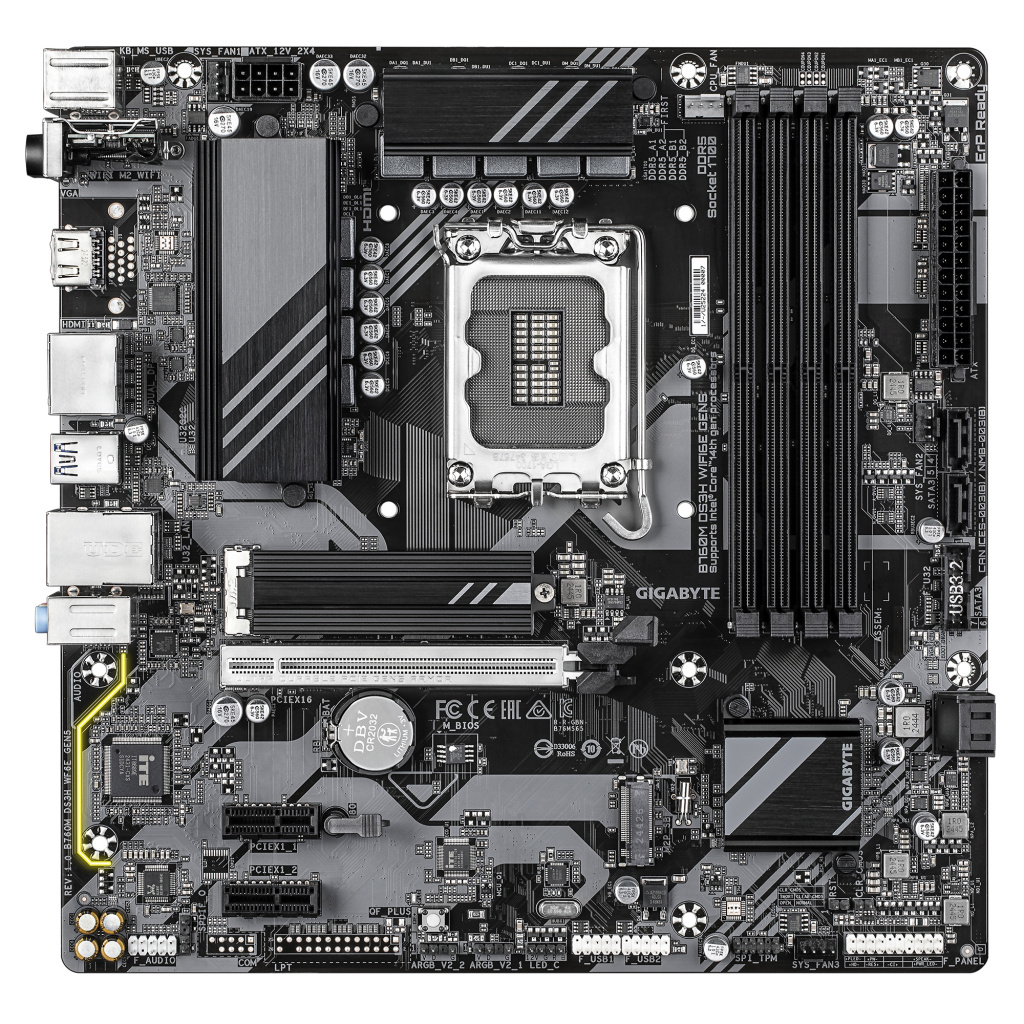

B760M DS3H WIFI6E GEN5 Motherboard – Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0
In stock
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
| Processor manufacturer | Intel |
|---|---|
| Brand | Gigabyte |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel |
| Supported memory types | DDR5-SDRAM |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 5600,5200,4800,4400 MHz |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| RAID levels | 0, 1, 5, 10 |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Component for | PC |
| Motherboard chipset | Intel B760 Express |
| Supported processor sockets | LGA 1700 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive types | HDD & SSD |
| Number of HDDs supported | 4 |
| Maximum resolution | 4096 x 2304 pixels |
| DirectX version | 12.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| LAN controller | Realtek RTL8125 |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Audio chip | Realtek ALC897 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 2 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Clear CMOS jumper | Yes |
| Width | 244 mm |
| Depth | 244 mm |
| DisplayPorts quantity | 2 |
| WiFi-AP antenna jack | 2 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Audio output channels | 7.1 channels |
| Number of chassis fan connectors | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.1 |
| Parallel processing technology support | Not supported |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| S/PDIF out connector | Yes |
| Number of storage drives supported | 6 |
| HDCP | Yes |
| DisplayPort version | 1.2 |
| Bundled software | Norton® Internet Security (OEM version) |
| RAID support | Yes |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Height | 35 mm |
| Supported memory clock speed (max) | 5600 MHz |
| Line-in | Yes |
| Country of origin | China |
| Package weight | 1.2 kg |
| Weight | 1.1 kg |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Product colour | Dark brown |
| Products per shipping (inner) case | 1 pc(s) |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Batteries included | Yes |
| Warranty period | 3 year(s) |
| Antenna included | Yes |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 3 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Screws included | Yes |
