$124.21 (Incl. GST)

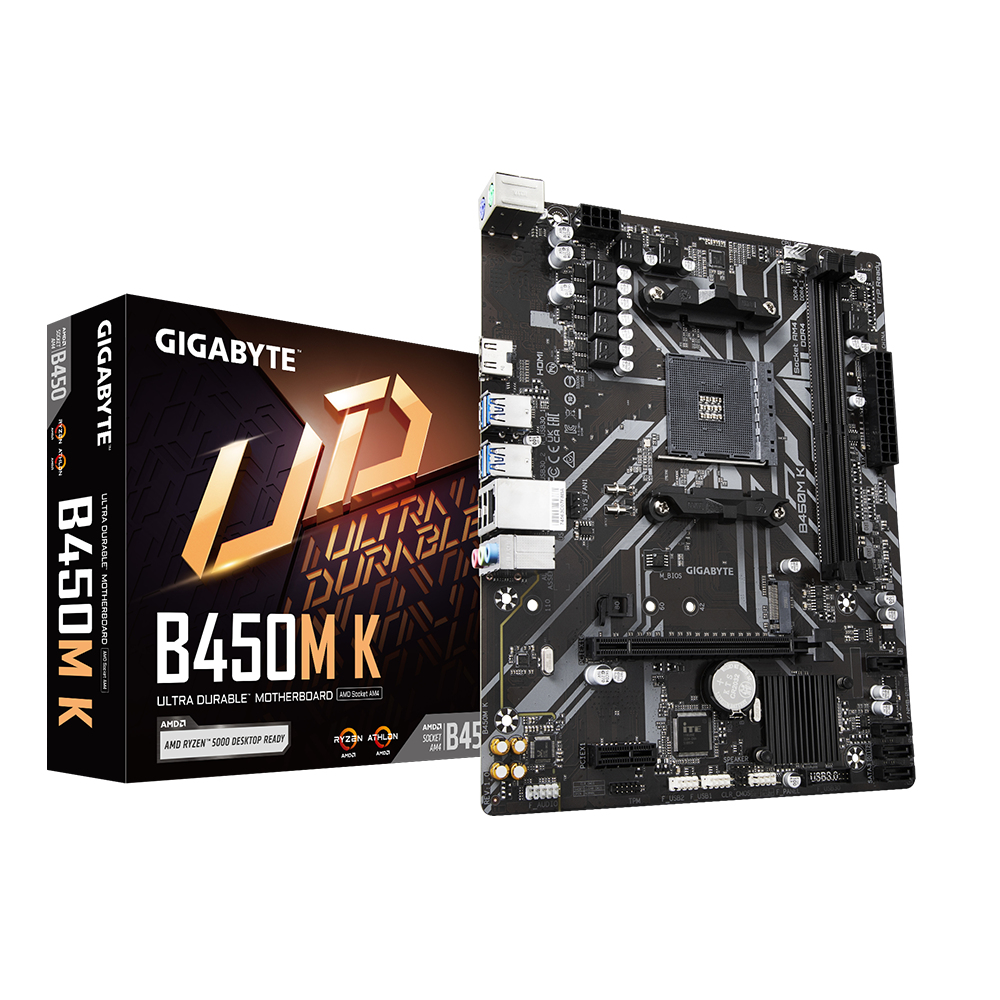

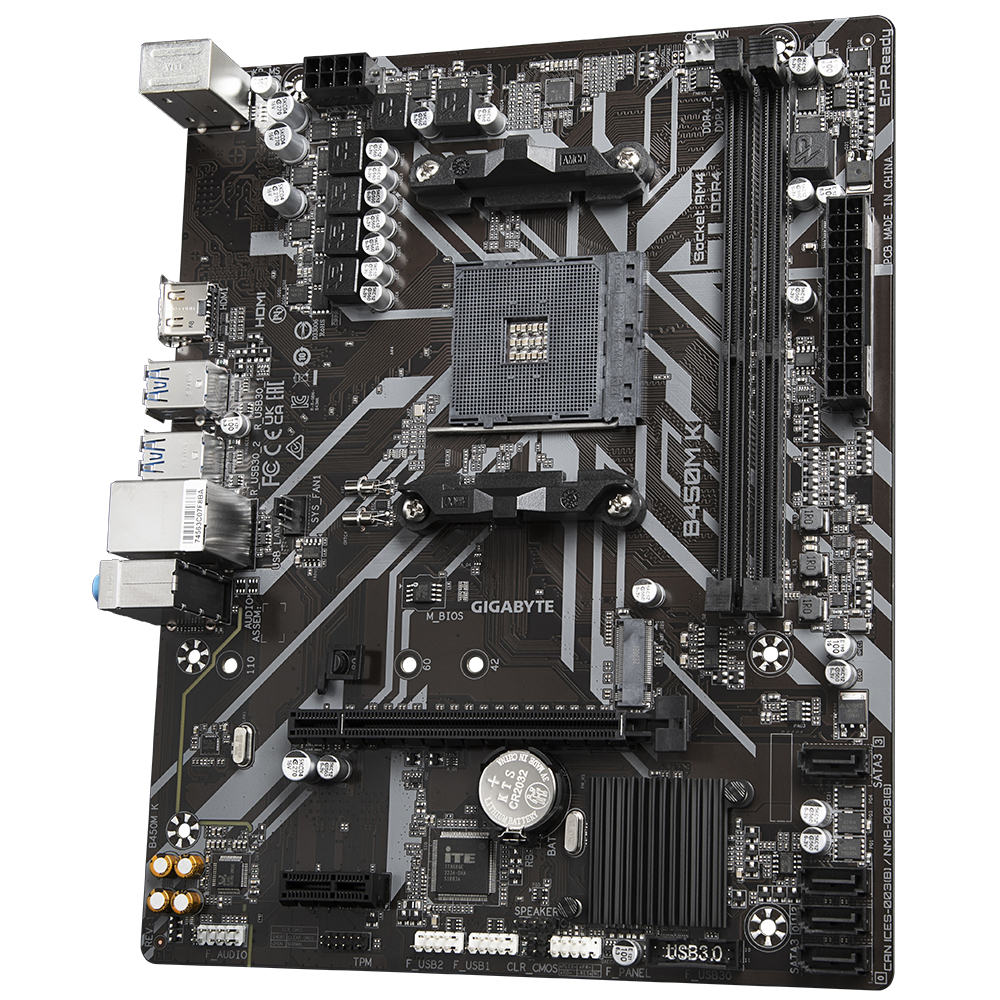

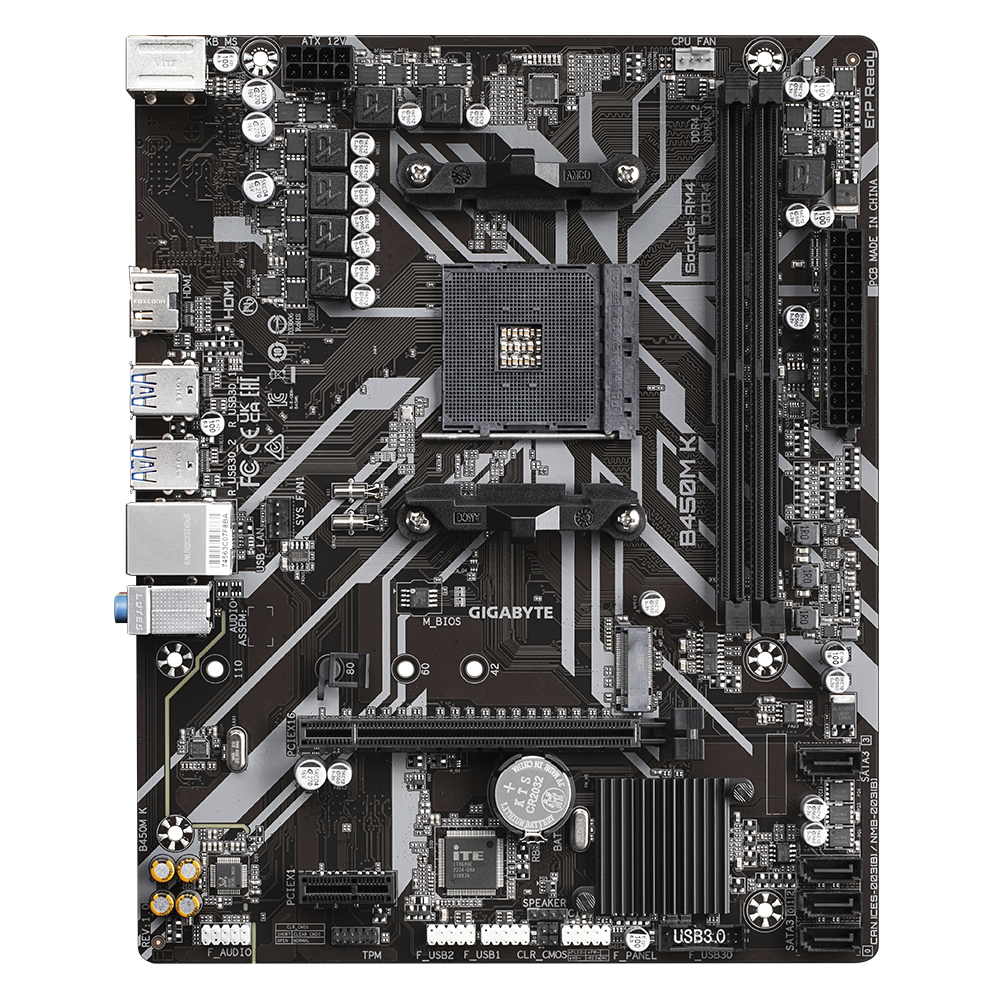

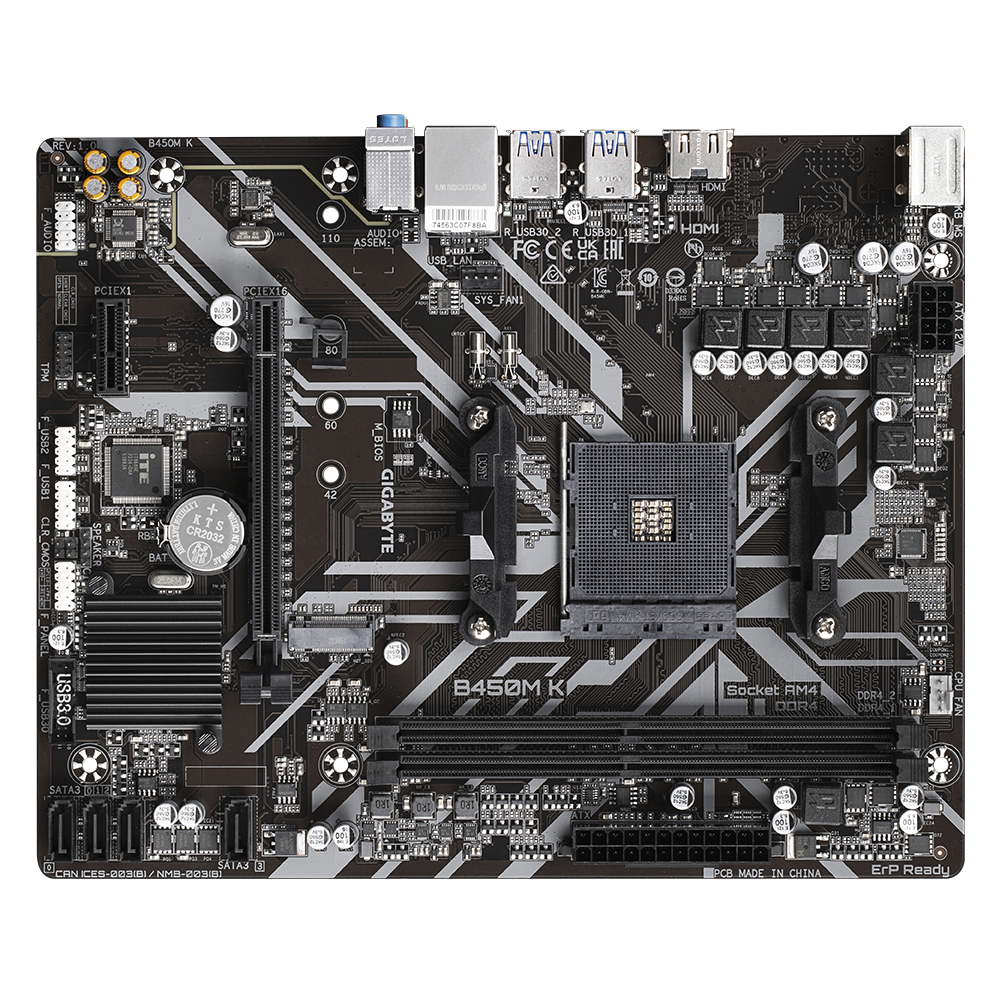

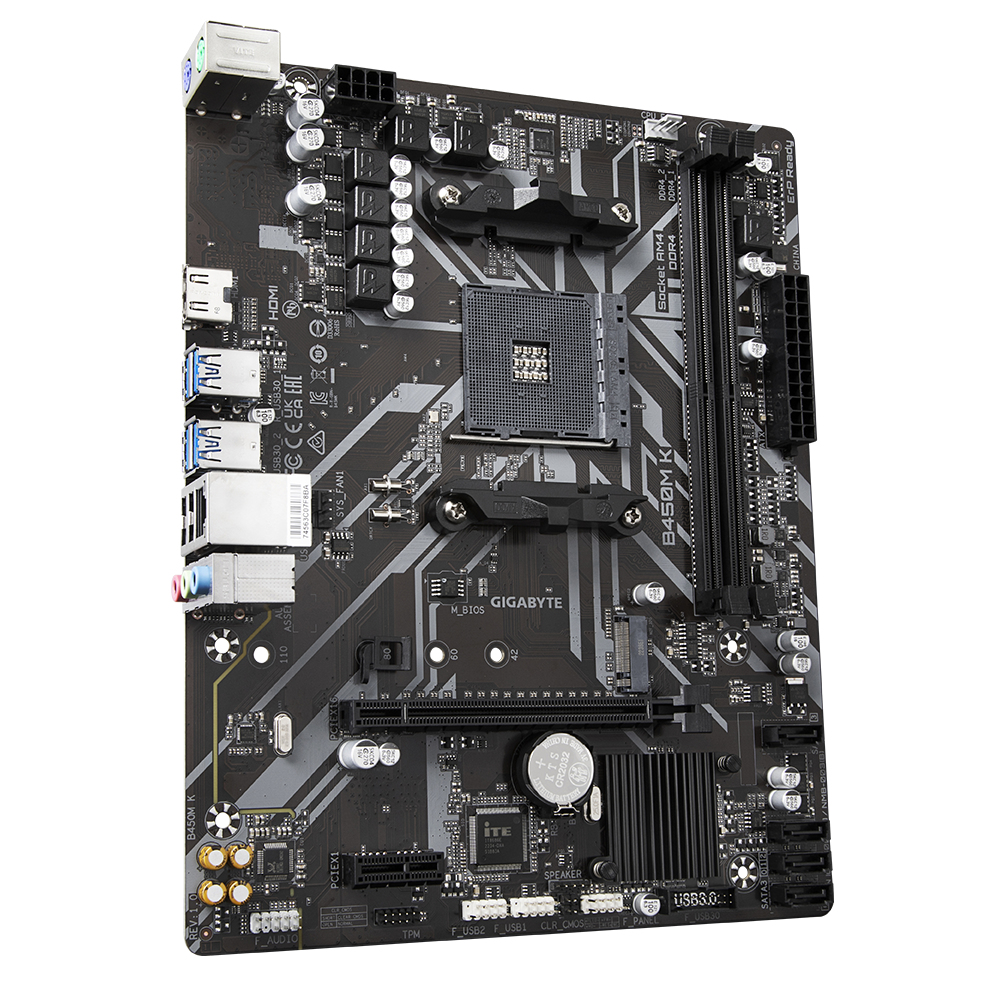

B450M K Motherboard – Supports AMD Series 5000 CPUs, up to 3600MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
In stock
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
| Processor manufacturer | AMD |
|---|---|
| Brand | Gigabyte |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2667,2933,3466,3600 MHz |
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 10 |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Component for | PC |
| Motherboard chipset | AMD B450 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Supported processor sockets | Socket AM4 |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| DirectX version | 12.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| PC health monitoring | Fan, Temperature, Voltage |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Clear CMOS jumper | Yes |
| Width | 233 mm |
| Depth | 198 mm |
| Cables included | SATA |
| Drivers included | Yes |
| Maximum number of SMP processors | 1 |
| Audio output channels | 7.1 channels |
| Number of chassis fan connectors | 1 |
| HDMI version | 2.0 |
| Parallel processing technology support | Not supported |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Maximum graphics adapter memory | 16000 MB |
| S/PDIF out connector | Yes |
| HDCP | Yes |
| Bundled software | Norton Internet Security (OEM version)LAN bandwidth management software |
| PCI Express x1 (Gen 2.x) slots | 2 |
| Height | 35 mm |
| Supported memory clock speed (max) | 3600 MHz |
| Country of origin | China |
| Package weight | 754 g |
| Package width | 265 mm |
| Package depth | 235 mm |
| Package height | 52 mm |
| Product colour | Brown |
| Products per shipping (inner) case | 1 pc(s) |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Batteries included | Yes |
| Warranty period | 3 year(s) |
| ECC сompatibility | ECC & Non-ECC |
