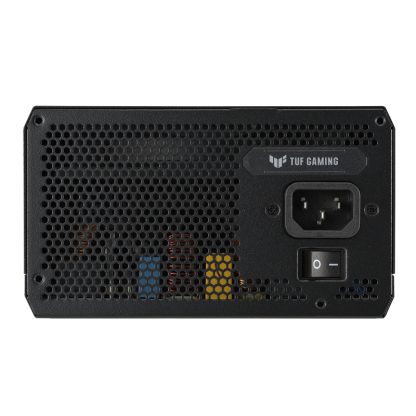

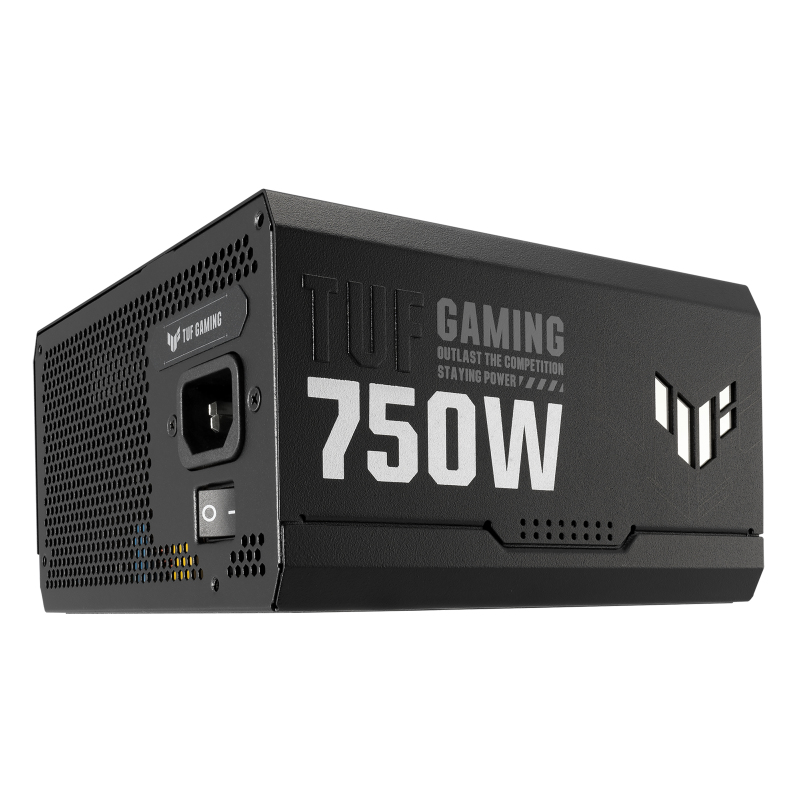

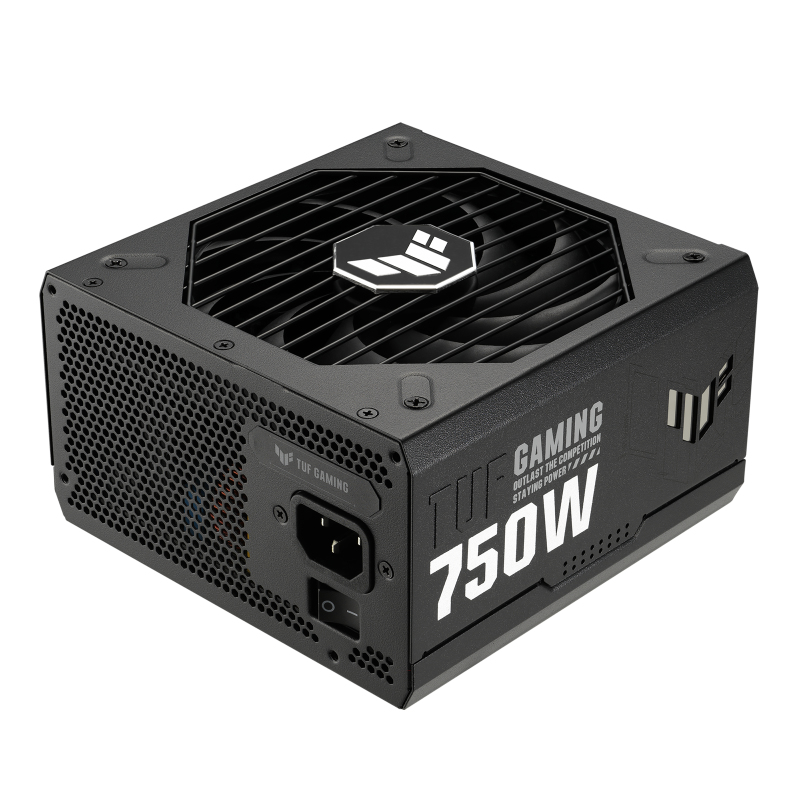

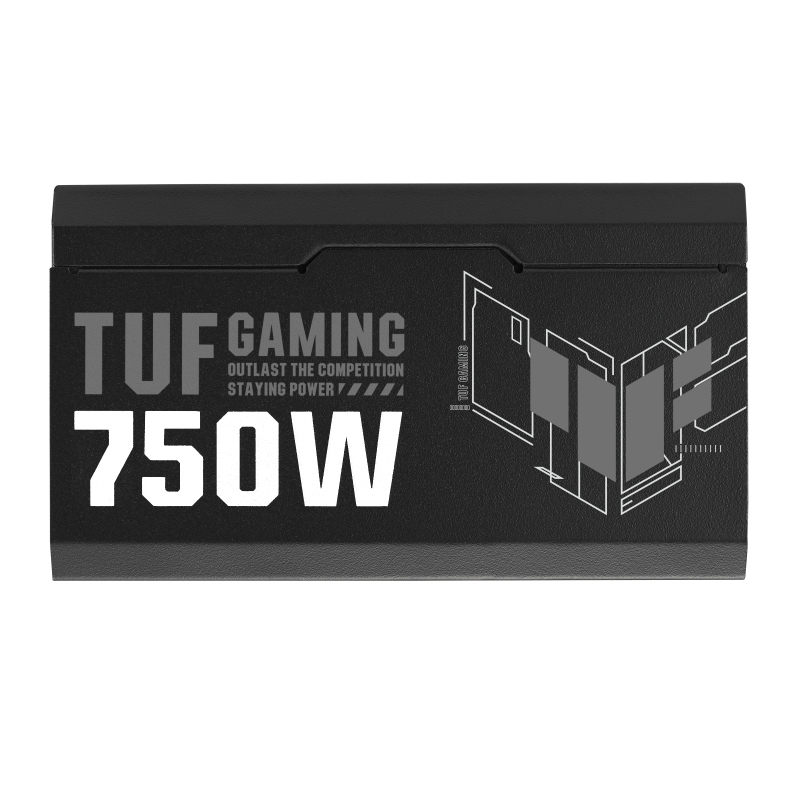

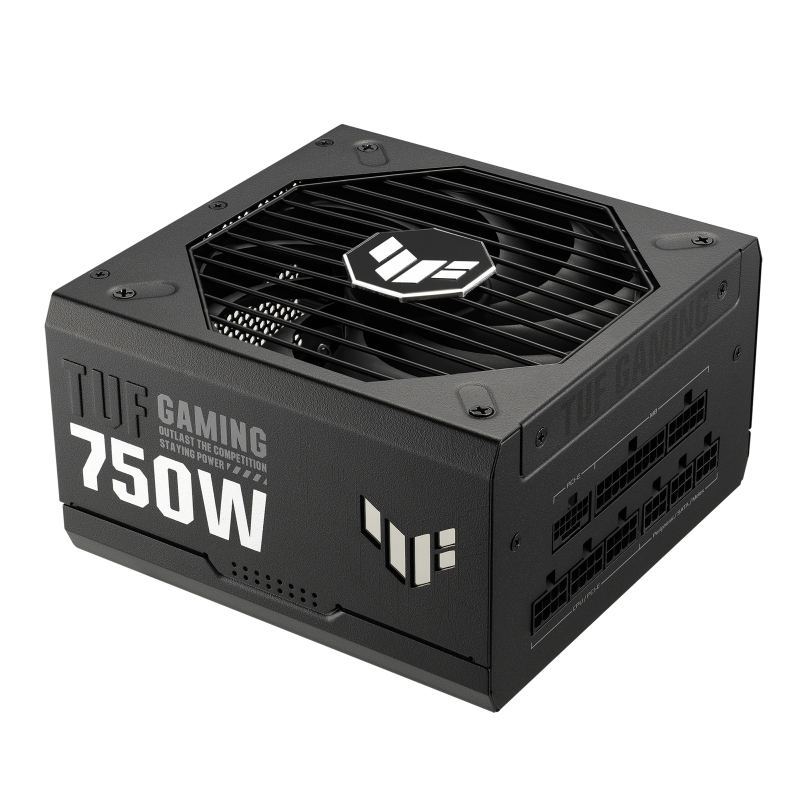

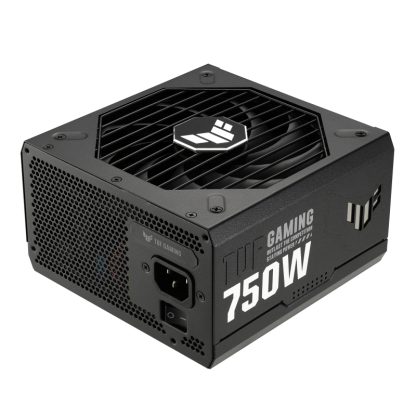

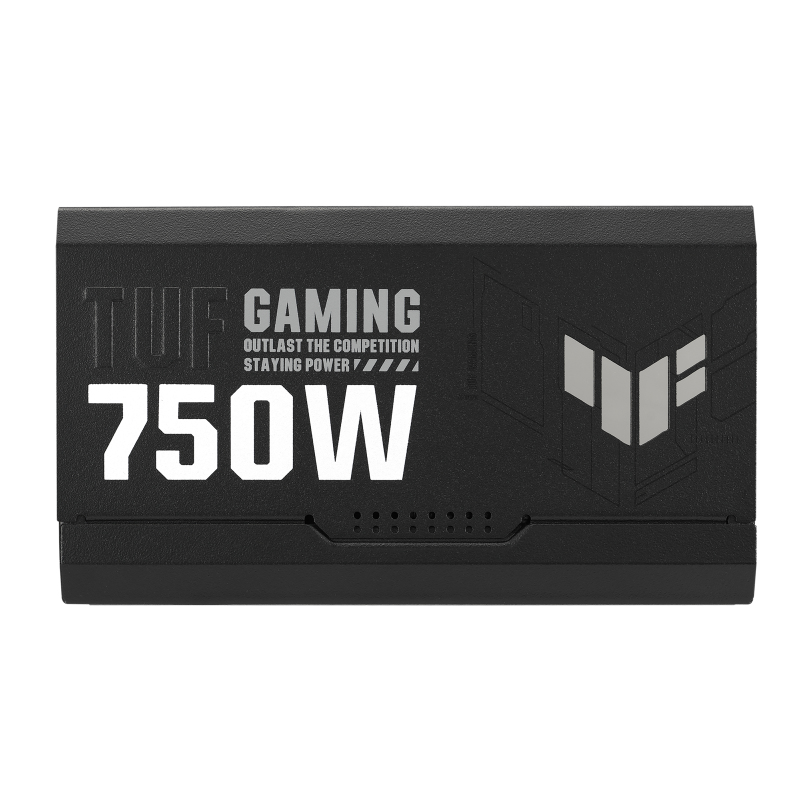

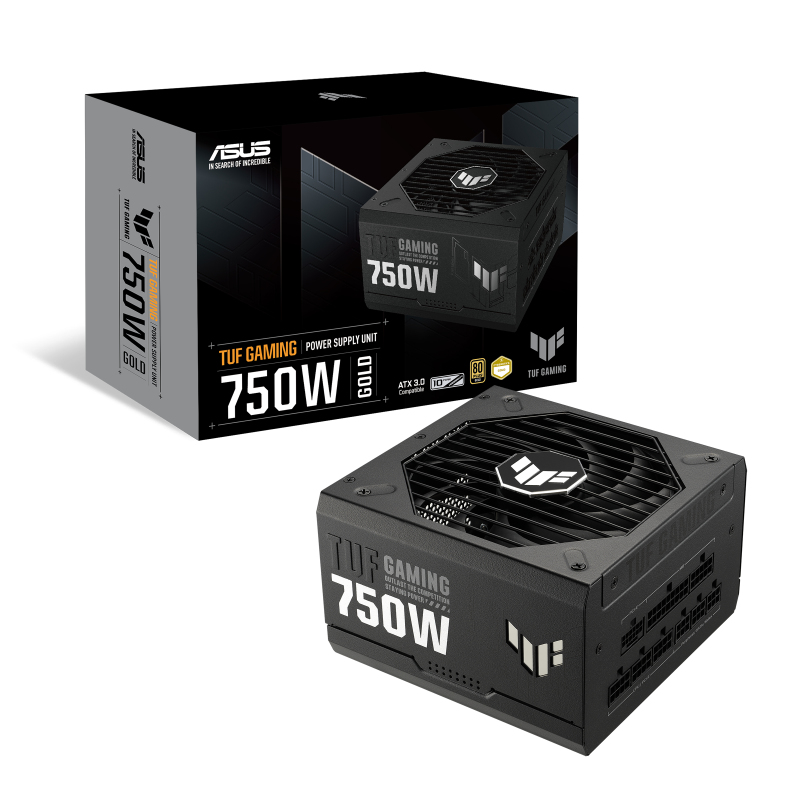

ASUS TUF-GAMING-750G power supply unit 750 W 20+4 pin ATX ATX Black

$248.68 (Incl. GST)

The TUF Gaming 750W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul.

In stock

SKU: ASUS_90YE00S3-B0ZA00 Category:

Print

Description

Built For The Long Haul
The ASUS TUF Gaming 750W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.

Durability

TUF Components
Top marks
With military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours’ lifespan, the ASUS TUF Gaming 750W Gold empowers you to build in confidence.

Dual Ball Fan Bearings
2x longer lifespan
Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

Protective PCB Coating
All wrapped up
A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.

ENGINEERING

80 Plus Gold Certification
Heart of gold
The TUF Gaming 750W Gold Aura Edition features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.

ATX 3.0 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware – and TUF Gaming 750W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.

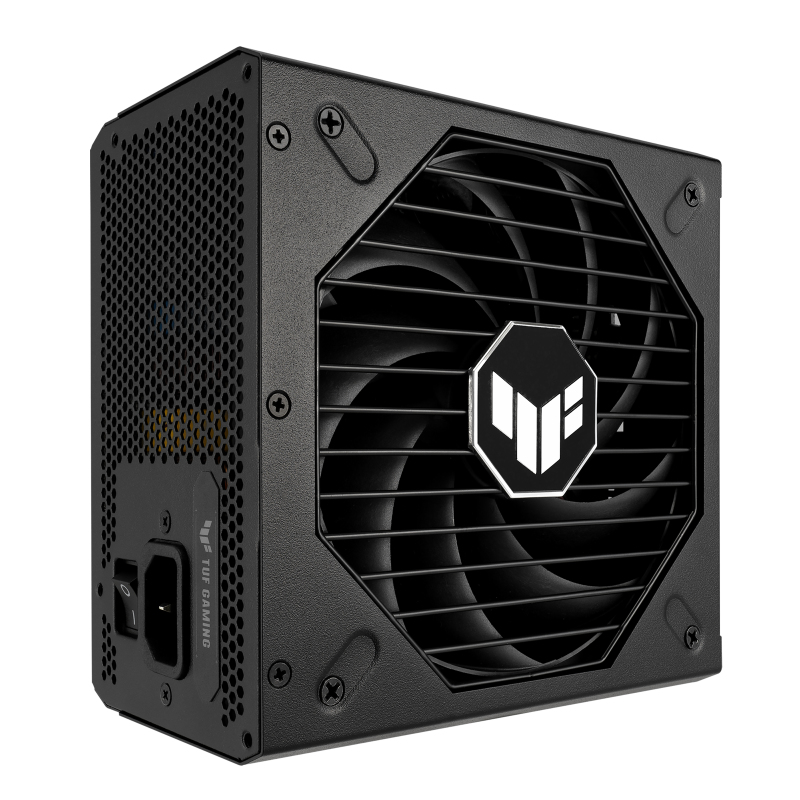

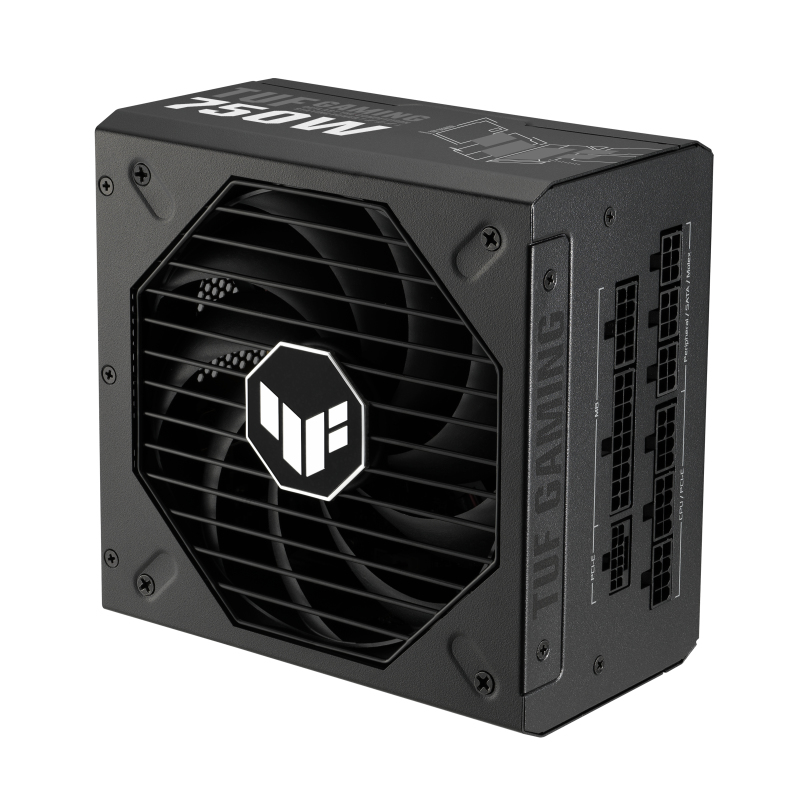

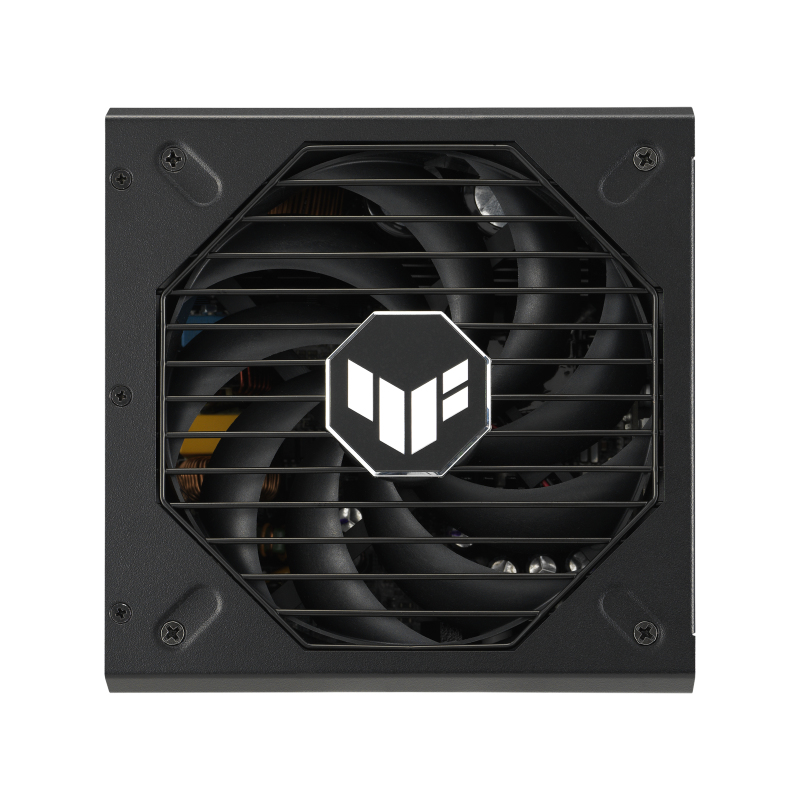

Axial-tech Fan Design
Better, faster, stronger
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we’ve scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.

EXPERIENCE

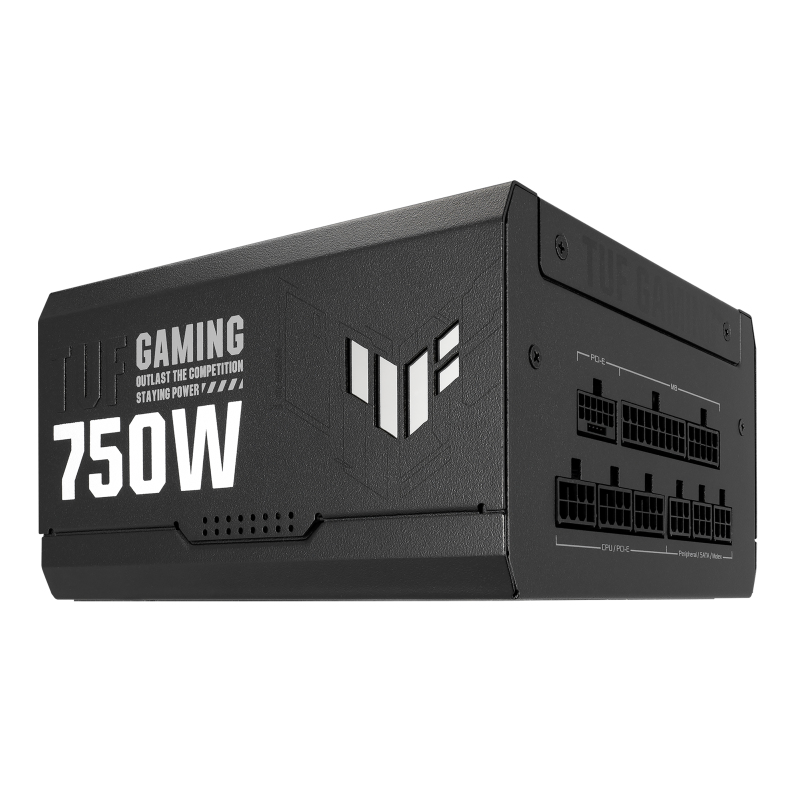

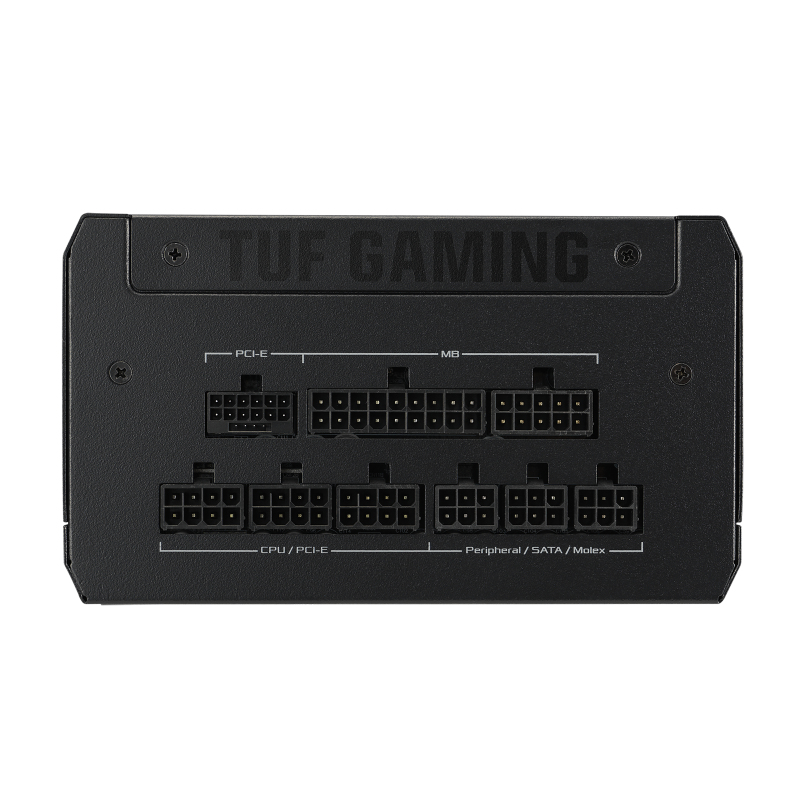

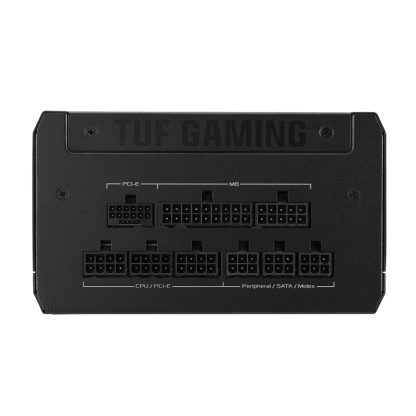

Fully Modular Etched Cables
Supple ply
The included fully-modular cable set is etched to provide a similar aesthetic to sleeved cables but a touch more flexibility for tight spaces.

Additional information

Total power

750 W

Brand

ASUS

Weight

2.38 kg

Operating temperature (T-T)

0 – 105 °C

AC input voltage

100 – 240 V

Product colour

Black

Purpose

PC

Width

150 mm

Depth

150 mm

Height

86 mm

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Gold

Motherboard power connector

20+4 pin ATX

Peripheral (Molex) power connectors (4-pin)

4

Cabling type

Fully-Modular

Total storage capacity

Active

Number of fans

1 fan(s)

Combined power (+3.3V)

130 W

Combined power (+5V)

130 W

Max output current (+3.3V)

25 A

Max output current (+5V)

25 A

Max output current (+5Vsb)

3 A

Efficiency

92%

Power protection features

Over current, Over power, Over voltage, Short circuit, Under voltage

Motherboard power cable length

61 cm

Number of SATA power connectors

5

SATA power cable length

120,400 mm

CPU power connector (4+4 pin)

Yes

Fan diameter

13.5 cm

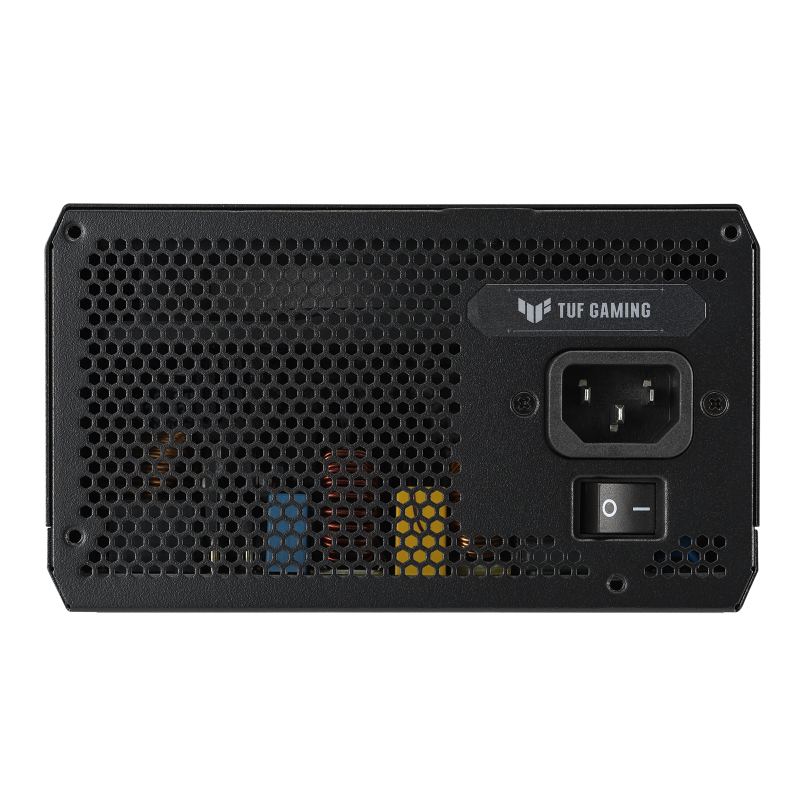

On/off switch

Yes

Combined power (-12V)

9.6 W

Combined power (+5Vsb)

15 W

Max output current (+12V)

62 A

CPU power cable length

65 cm

Cables included

AC, CPU, PCIe, Peripheral (Molex), SATA

Sustainability certificates

RoHS

Peripheral (Molex) power cable length

150,400 mm

ATX power connector (20+4 pin)

Yes

ATX version

3.0

Bearing technology

Ball bearing

Mean time between failures (MTBF)

170000 h

PCI Express power connectors (16-pin)

1

Cable tie(s) included

Yes

PCI Express power connectors (8-pin)

3

Sustainability compliance

Yes

Warranty period

10 year(s)
