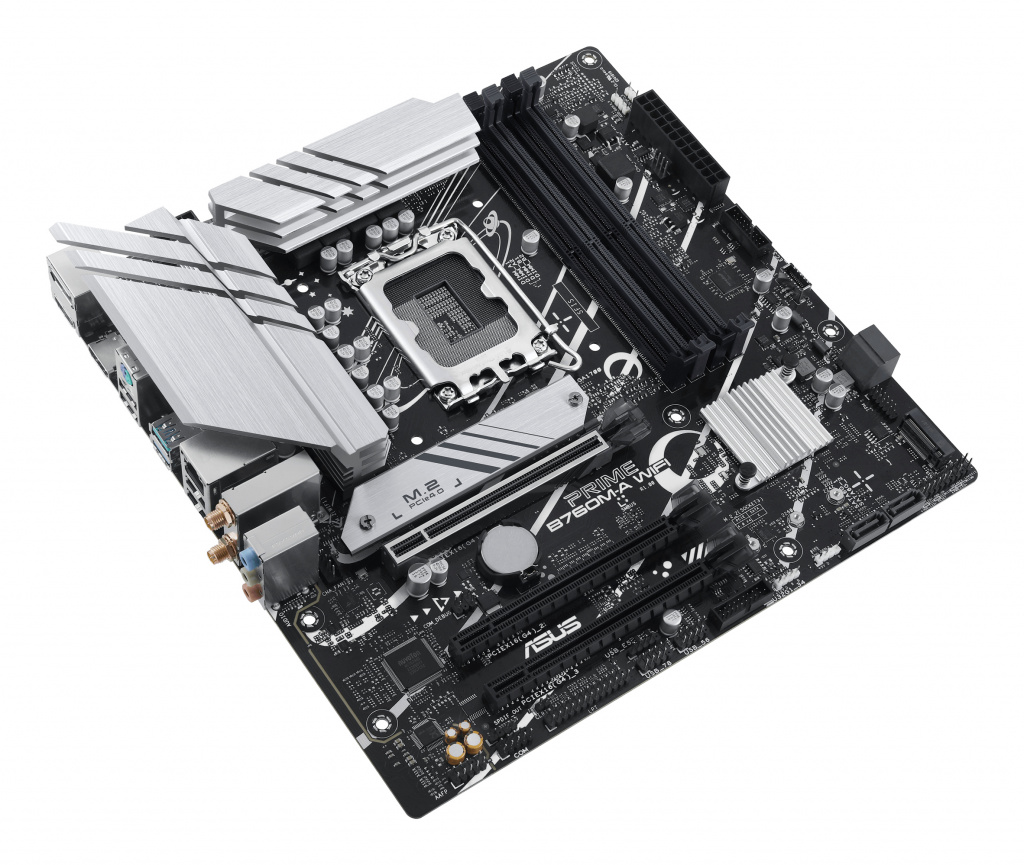

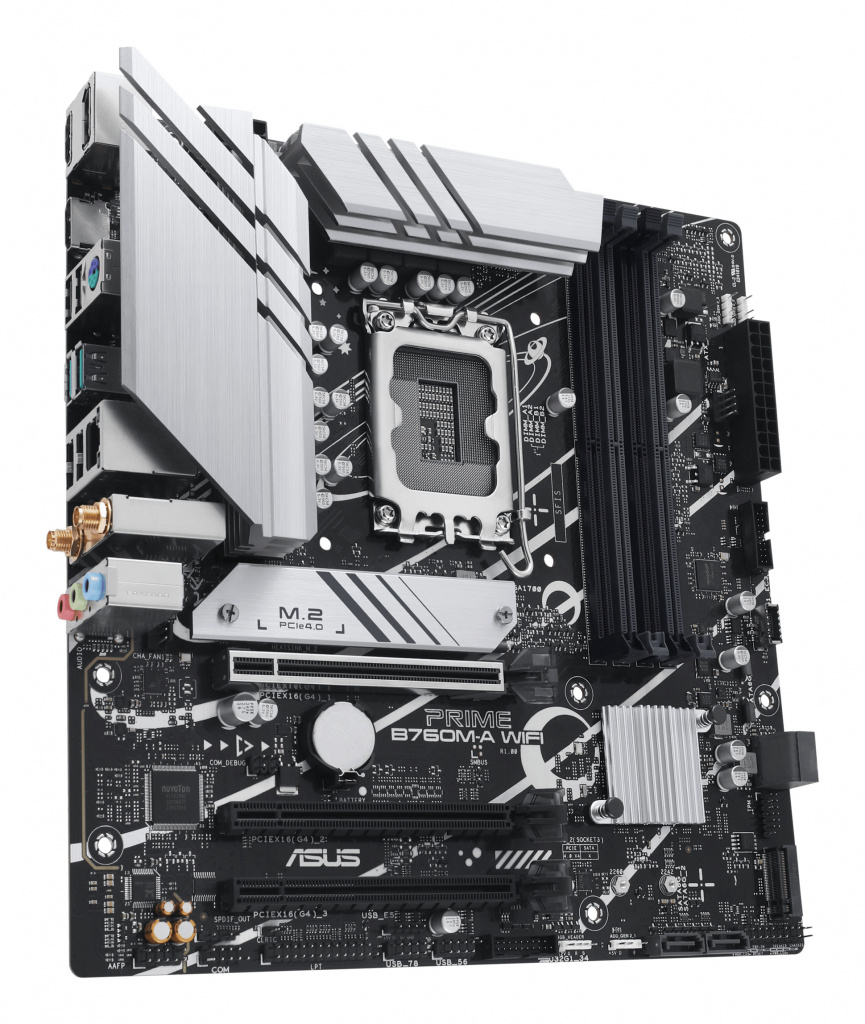

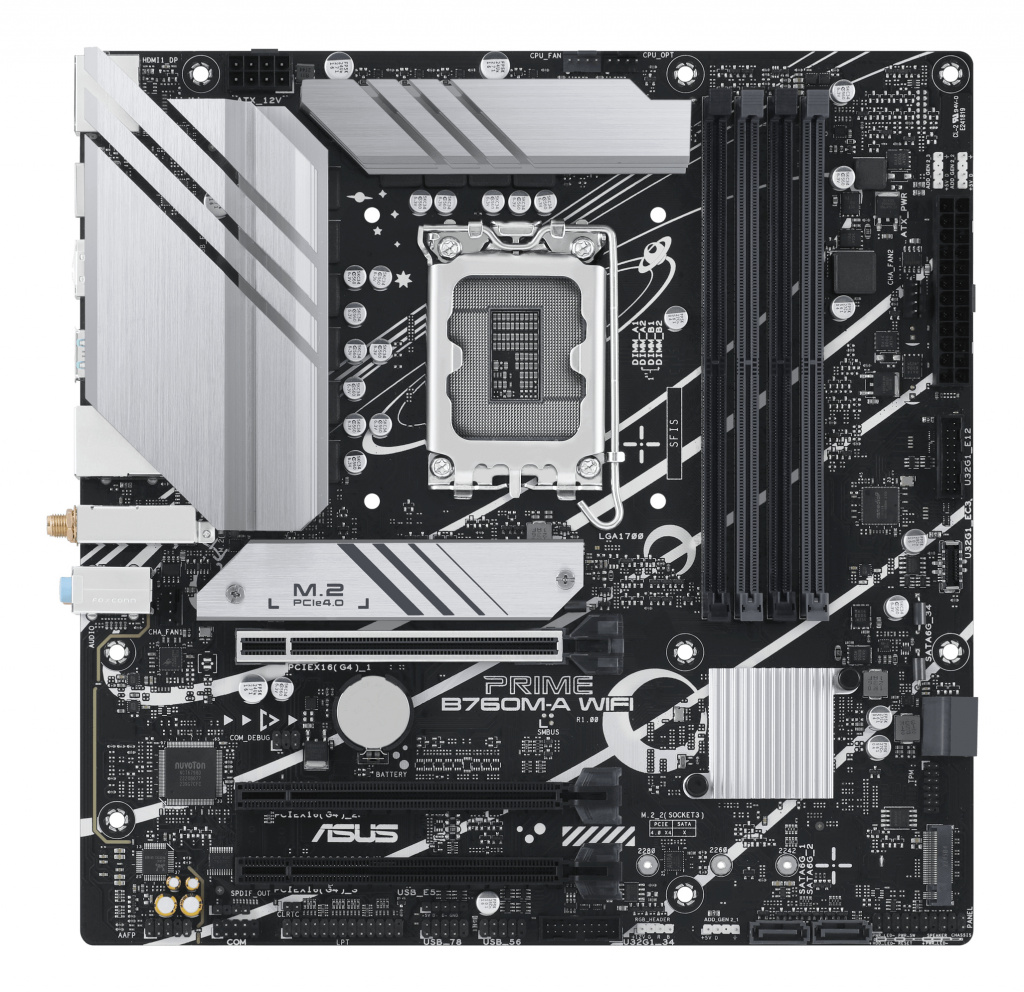

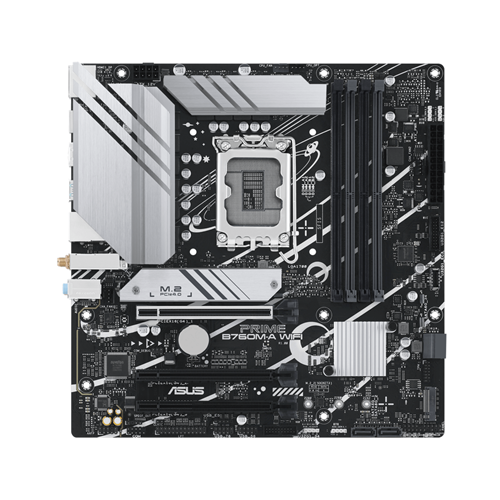

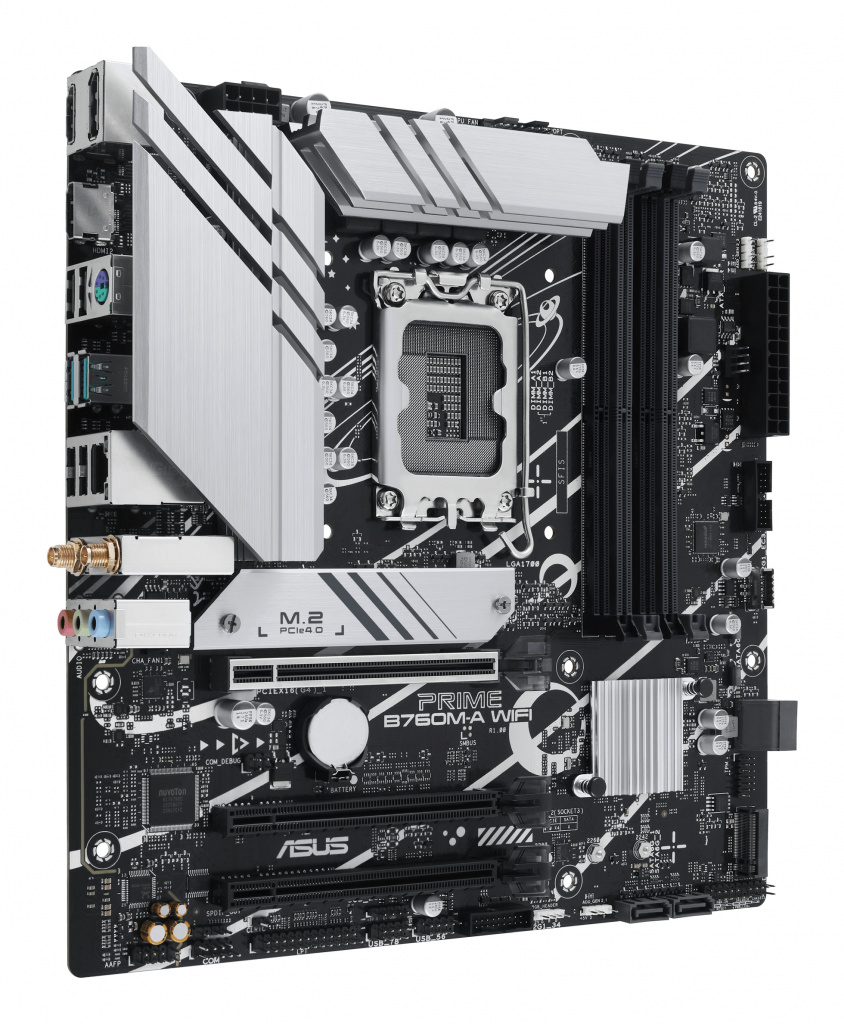

ASUS PRIME B760M-A WIFI-CSM motherboard Intel B760 LGA 1700 micro ATX
ASUS PRIME B760M-A WIFI-CSM motherboard Intel B760 LGA 1700 micro ATX - Image 2
ASUS PRIME B760M-A WIFI-CSM motherboard Intel B760 LGA 1700 micro ATX - Image 3
ASUS PRIME B760M-A WIFI-CSM motherboard Intel B760 LGA 1700 micro ATX - Image 4
ASUS PRIME B760M-A WIFI-CSM motherboard Intel B760 LGA 1700 micro ATX - Image 5

ASUS PRIME B760M-A WIFI-CSM motherboard Intel B760 LGA 1700 micro ATX

$274.22 (Incl. GST)

Intel B760, 4 x DIMM slots, Max. 128GB, DDR5, Realtek 2.5Gb Ethernet, 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth 5.2, 128 Mb

In stock

SKU: ASUS_PRIME B760M-A WIFI-CSM Category:

Print

Description

Intel® B760 (LGA 1700) mATX mortheboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync

PRIME B760M-A WIFI-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

Additional information

Processor manufacturer

Intel
Brand

ASUS
Processor socket

LGA 1700
Compatible processor series

Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel
Supported memory types

DDR5-SDRAM
Maximum internal memory

128 GB
Memory channels

Dual-channel
Supported memory clock speeds

4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Supported storage drive interfaces

M.2, SATA III
USB 2.0 connectors

3
USB 2.0 ports quantity

4
Ethernet LAN (RJ-45) ports

1
Wi-Fi

Yes
Ethernet LAN

Yes
Ethernet interface type

2.5 Gigabit Ethernet
Component for

PC
Motherboard chipset

Intel B760
Number of memory slots

4
Memory slots type

DIMM
Unbuffered memory

Yes
Supported storage drive types

HDD & SSD
Number of HDDs supported

4
USB 3.2 Gen 1 (3.1 Gen 1) connectors

3
Number of SATA III connectors

4
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
TPM connector

Yes
12V power connector

Yes
RGB LED pin header

Yes
HDMI ports quantity

2
PS/2 ports quantity

1
Microphone in

Yes
Motherboard form factor

micro ATX
Motherboard chipset family

Intel
Windows operating systems supported

Windows 10 x64, Windows 11
BIOS type

UEFI AMI
BIOS memory size

128 Mbit
Width

244 mm
Depth

244 mm
DisplayPorts quantity

1
Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth

Yes
Bluetooth version

5.2
Audio output channels

7.1 channels
Number of chassis fan connectors

2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2
Top Wi-Fi standard

Wi-Fi 6 (802.11ax)
PCI Express x16 (Gen 4.x) slots

2
S/PDIF out connector

Yes
Number of storage drives supported

6
Number of COM connectors

1
Compatible operating systems

Windows 11, Windows 10 64-bit
Supported memory clock speed (max)

7200 MHz
Line-in

Yes
Product colour

Multicolour
ECC сompatibility

Non-ECC
