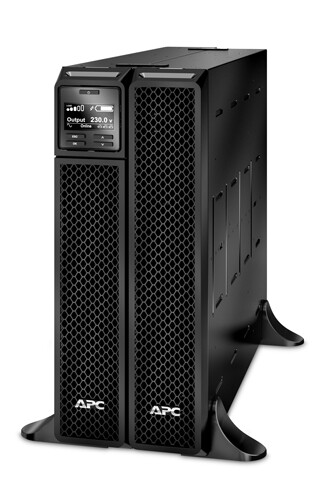

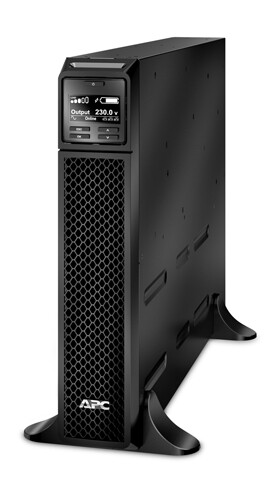

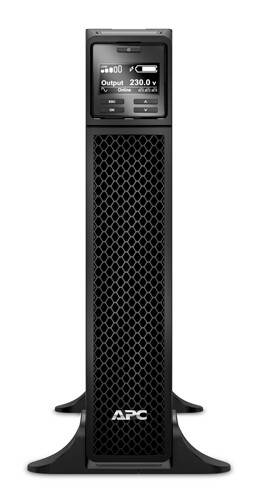

APC Smart-UPS On-Line, 2200VA, Tower, 230V, 8x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit

$4,512.14 (Incl. GST)

Smart-UPS On-Line, 2200VA, Tower, 230V, 8x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit

In stock

SKU: APC_SRT2200XLI Category:

Print

Description

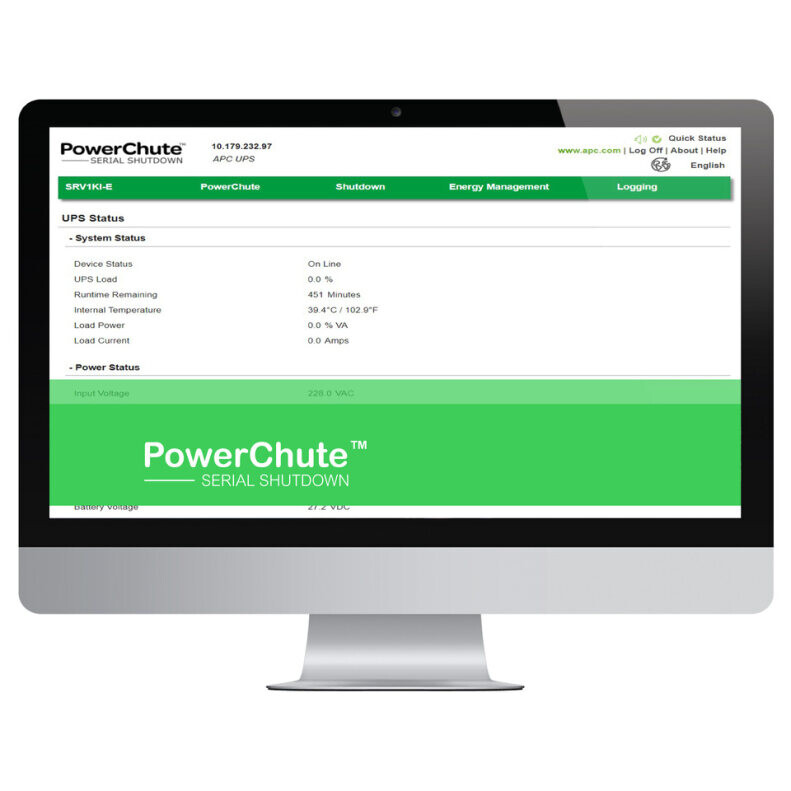

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13 and 2x IEC 320 C19 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13/60320 C13 and 2x IEC 320 C19/60320 C19 outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Additional information

Product colour

Black

Brand

APC

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-15 – 45 °C

Operating relative humidity (H-H)

0 – 95%

Storage relative humidity (H-H)

0 – 95%

Operating altitude

0 – 3000 m

UPS topology

Double-conversion (Online)

Output power capacity

2.2 kVA

Output power

1980 W

Input frequency

40/70 Hz

Surge energy rating

340 J

Efficiency

92.2%

Surge protection

Yes

Audible alarm(s)

Yes

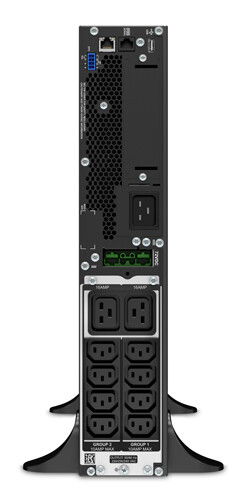

AC outlet types

C13 coupler, C19 coupler

Power plug

C20 coupler

AC outlets quantity

10 AC outlet(s)

Number of output IEC jumpers

2

USB port

Yes

Battery technology

Sealed Lead Acid (VRLA)

Battery capacity

367 VAh

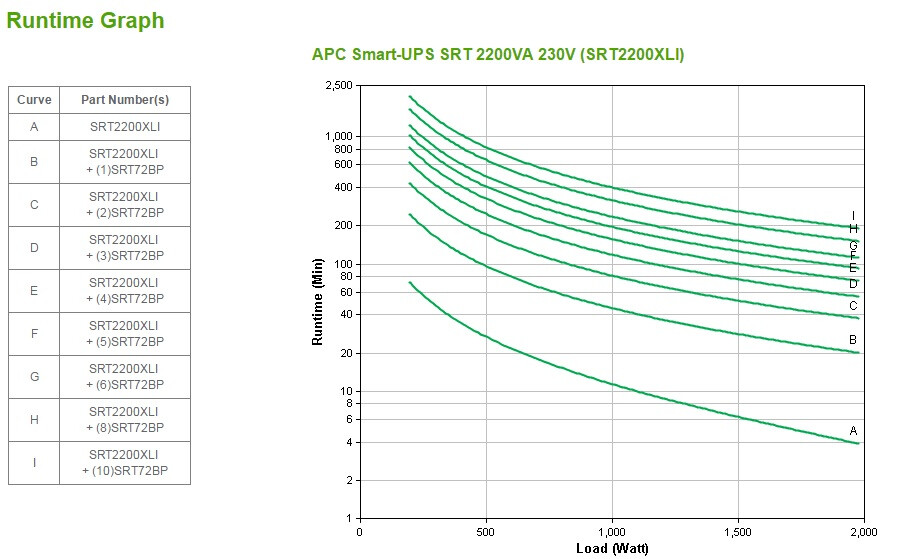

Typical backup time at full load

3.9 min

Typical backup time at half load

11.6 min

Battery life (max)

5 year(s)

Battery recharge time

3 h

Automatic battery test

Yes

Form factor

Rackmount/Tower

Cable length

2.44 m

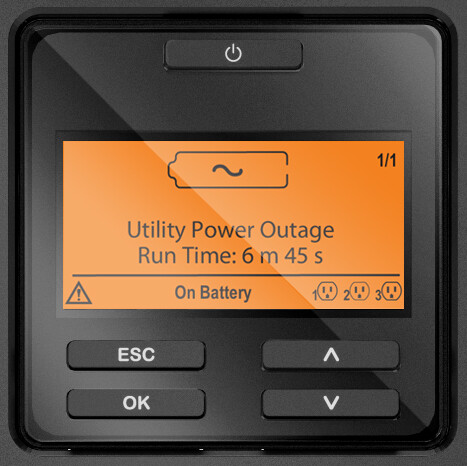

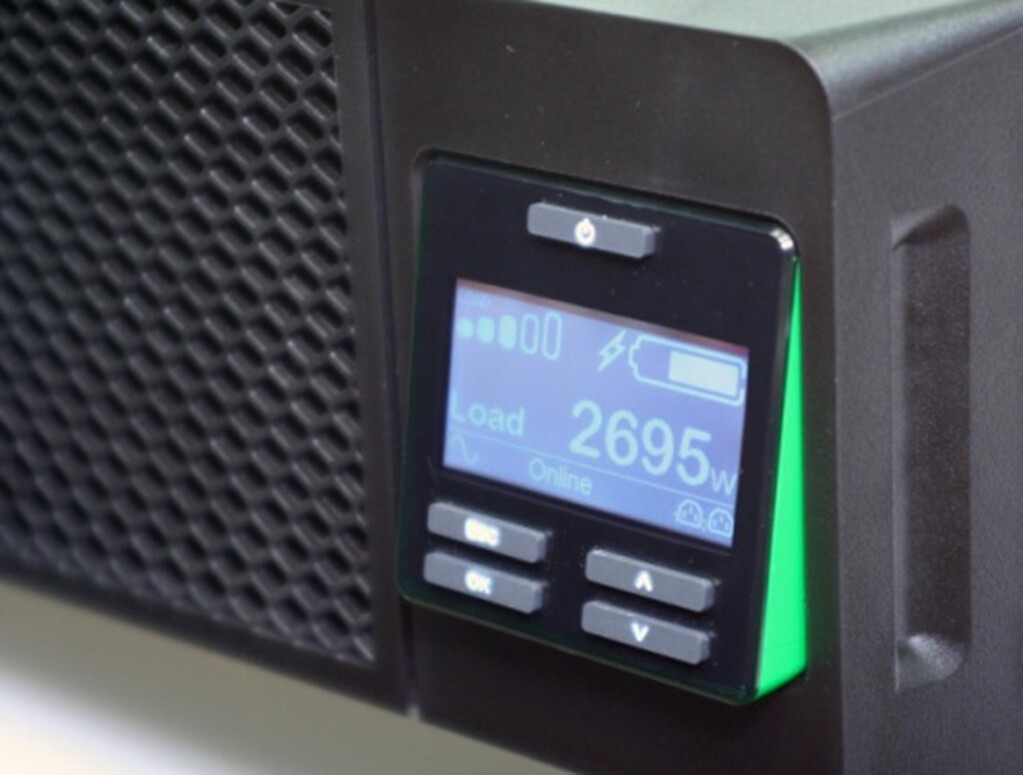

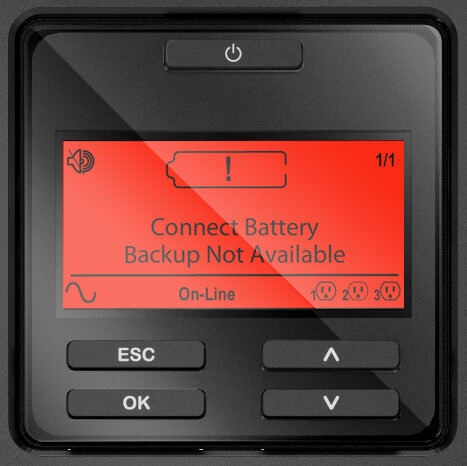

LED indicators

Yes

Certification

CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH

Non-operating altitude

0 – 15000 m

Sustainability certificates

ENERGY STAR, Green Premium

Width

85 mm

Depth

584 mm

Height

432 mm

Weight

25 kg

Cables included

USB cable

Quick installation guide

Yes

Warranty card

Yes

Software CD

Yes

Package width

599 mm

Package depth

810 mm

Package height

246 mm

Package weight

30.8 kg

Products per pallet

12 pc(s)

Nominal output voltage

230 V

Nominal input voltage

230 V

Waveform

Sine

Input operation voltage (min)

100 V

Input operation voltage (max)

275 V

Noise level

55 dB

Packaging content

Power cordRemovable support feet

Emergency Power Off (EPO)

Yes

Interface

SmartSlot

Serial interface

Yes

Serial interface type

RJ-45

SmartSlot

Yes

Hot-swap battery

Yes

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Crest factor

3:1

Auto-restart

Yes
