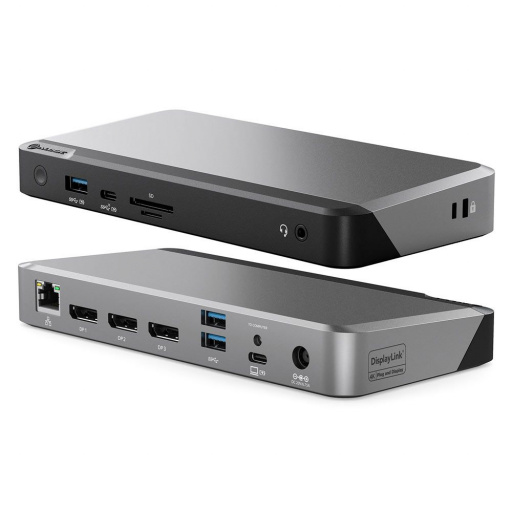

ALOGIC DX3 Triple 4K Display Universal Docking Station – with 100W Power Delivery

$472.96 (Incl. GST)

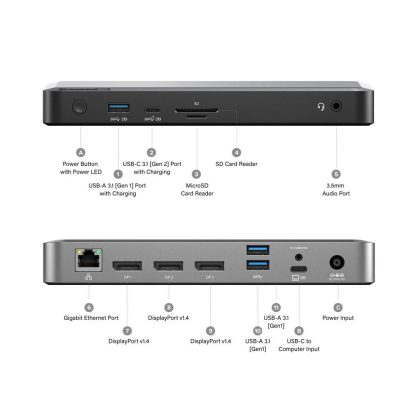

4K, USB-C – 3 x DisplayPort/1 x USB-C 3.1 Gen 2/3 x USB-A 3.1 Gen 1/1 x 3.5mm/1 x RJ45/1 x SD/1 x Micro SD, 100 W, 190 x 90 x 6.

In stock

SKU: ALOGIC_DUPRDX3-WW Category:

Print

Description

Designed to expand the capabilities of any laptop. Engineered for compatibility across all Windows, MacOS and ChromeOS laptops, the DX3 dock provides access to all of the ports required in a home office, education, or corporate environment.

IMMERSIVE TRIPLE 4K

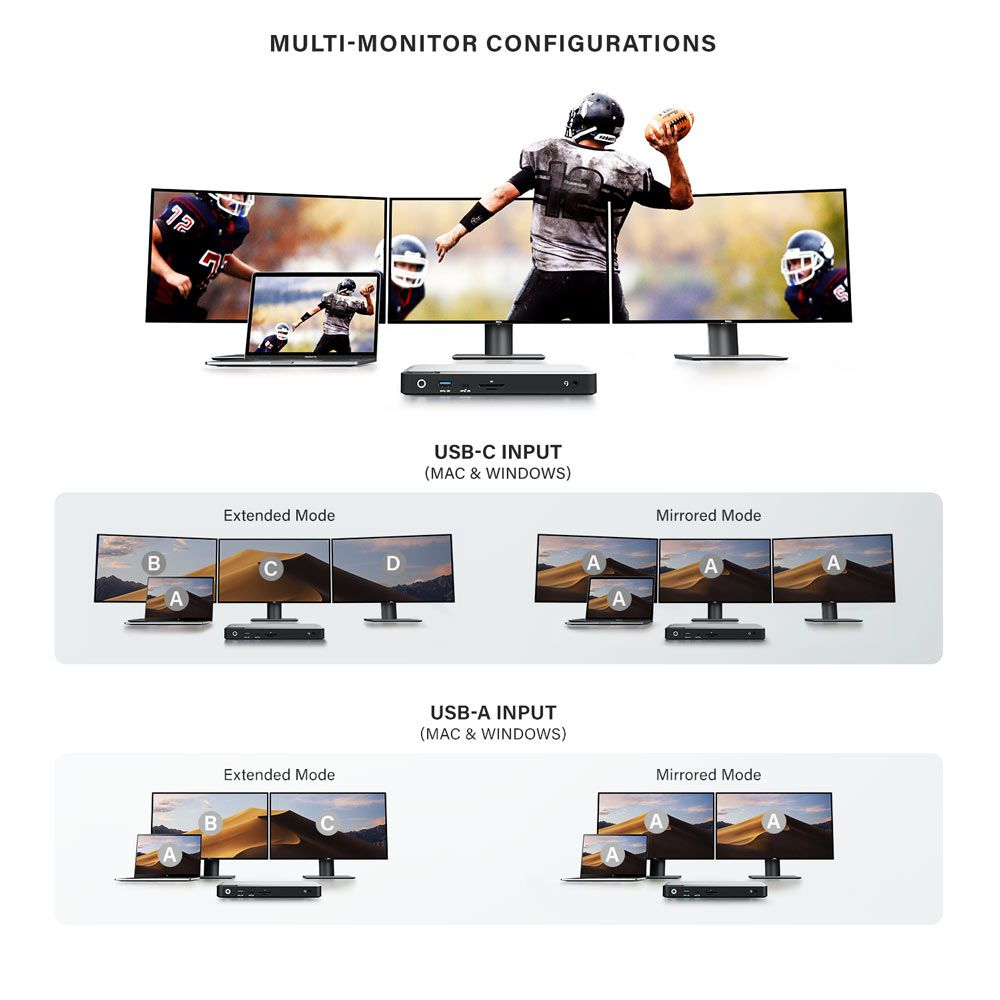

Sometimes you need more screen real estate. The DX3 can connect up to three external displays at 4K resolutions through its triple DisplayPort outputs*

Whether you need to view big spreadsheets on multiple screens, compare designs, enter data or more, the DX3 is the perfect way to see more work on your screen, and do more work on your screen.

*The available resolution of the third video output depends on the capabilities of the computer used with the docking station. Refer to the Display Resolution Table below for details on the output capabilities of computers based on their specifications.

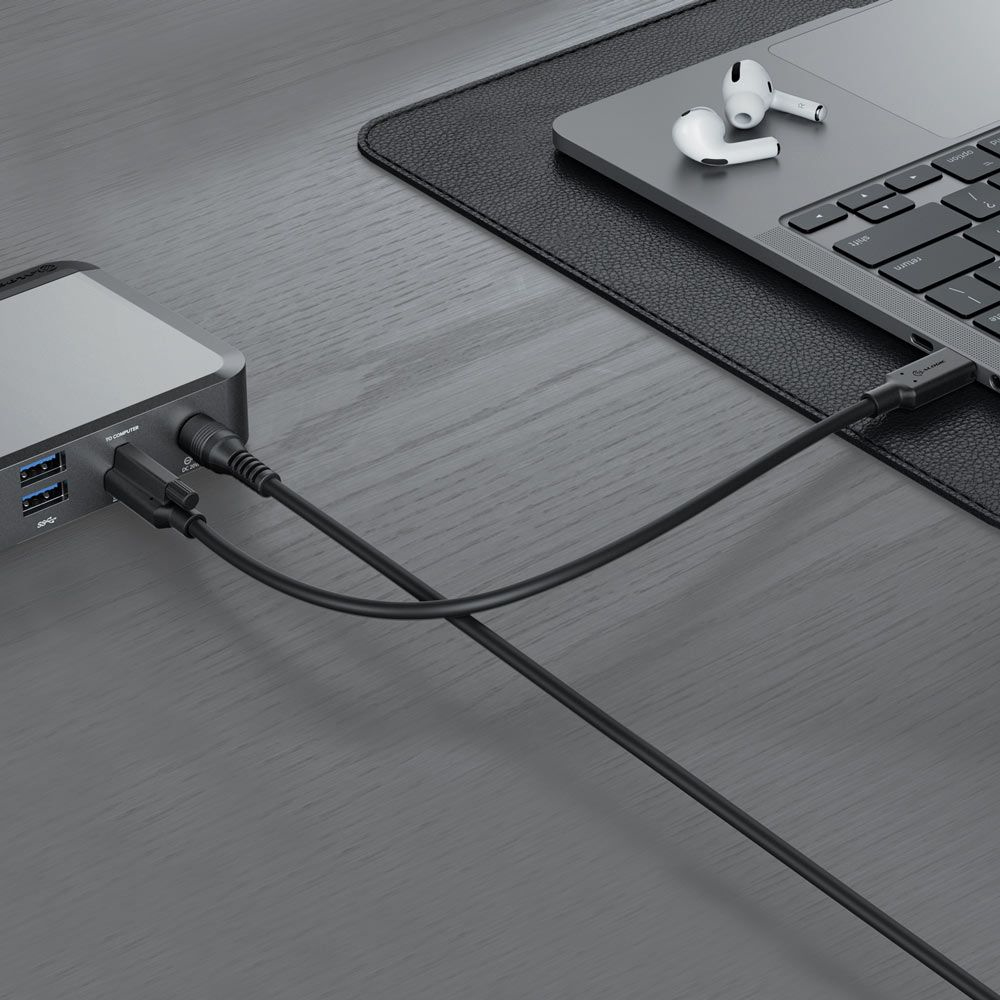

SMALL DESK FOOTPRINT. BIG PERFORMANCE

The DX3’s compact design occupies minimal desk space to deliver premium performance. It’s the ideal dock for a distraction-free desk set up focused on productivity.

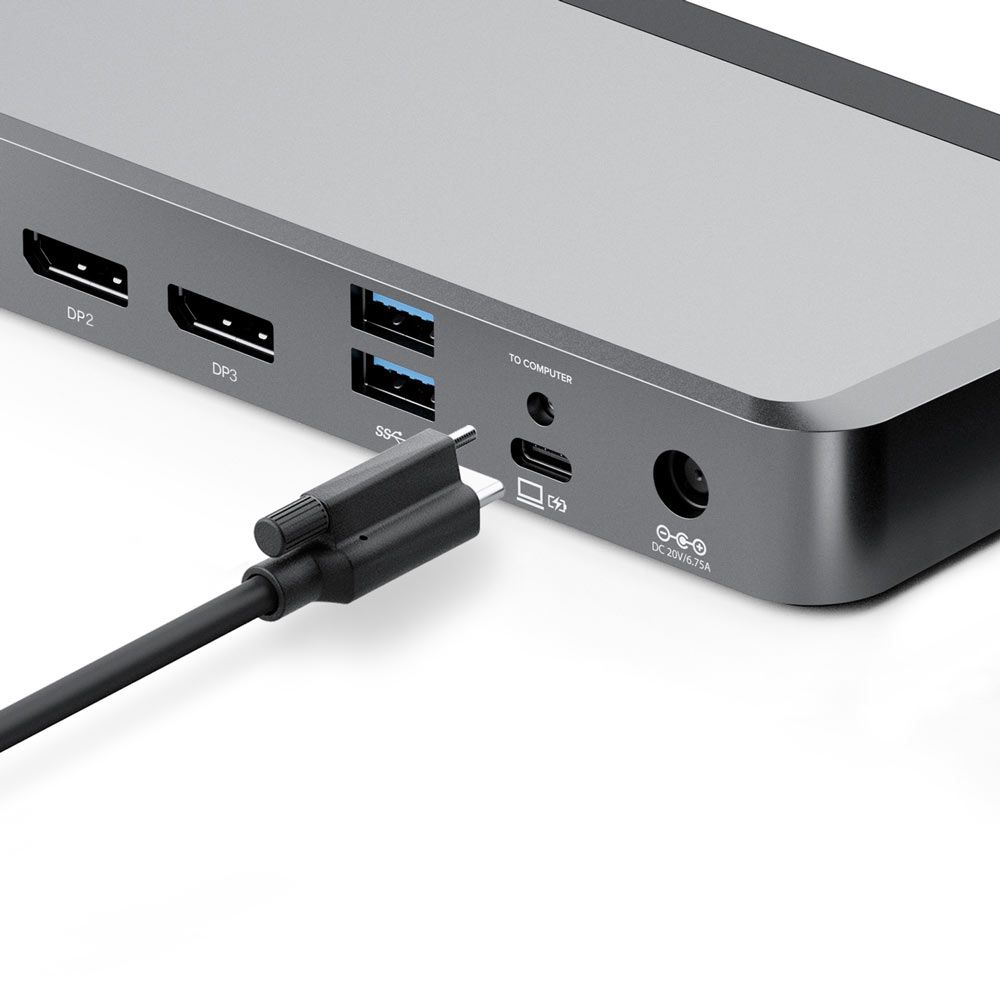

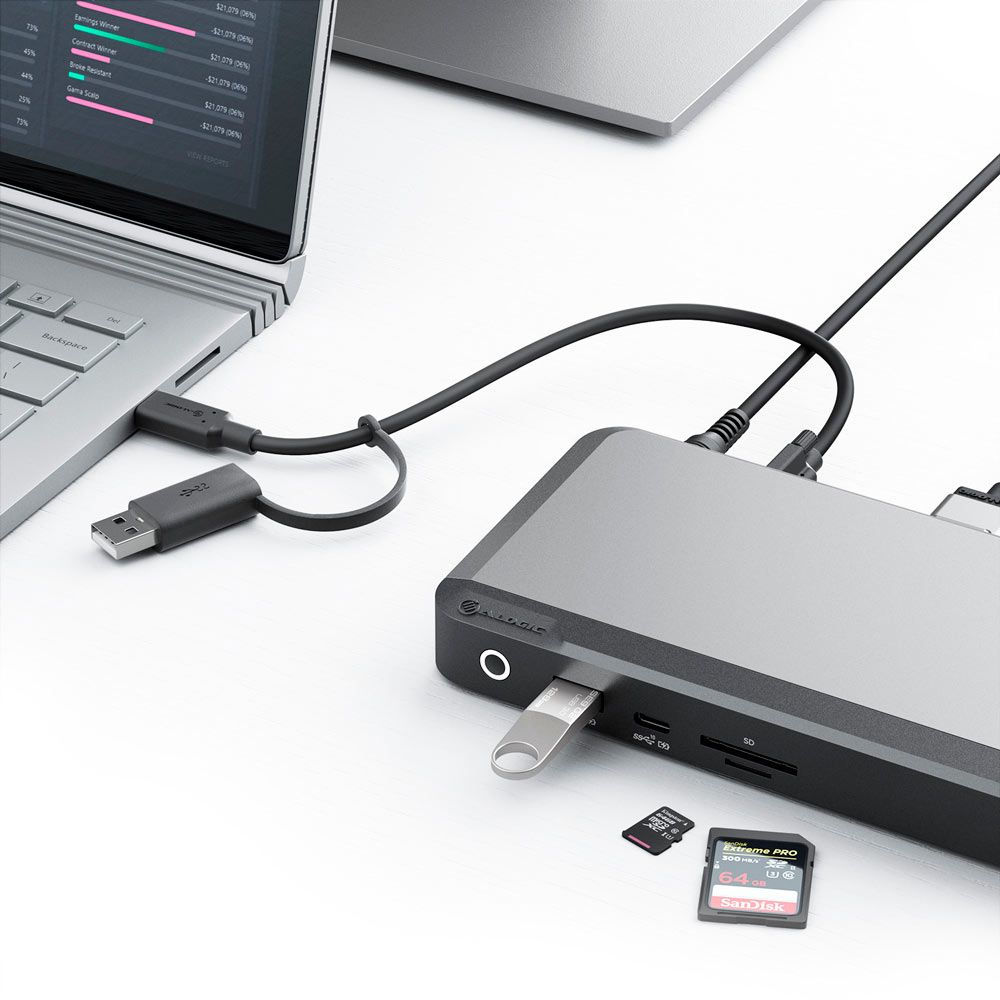

USB-C & USB-A LAPTOP COMPATIBLE

IT decision-makers and organisations have more options with the DX3. It supports USB-C and USB-A laptop deployment.

LED Power Light

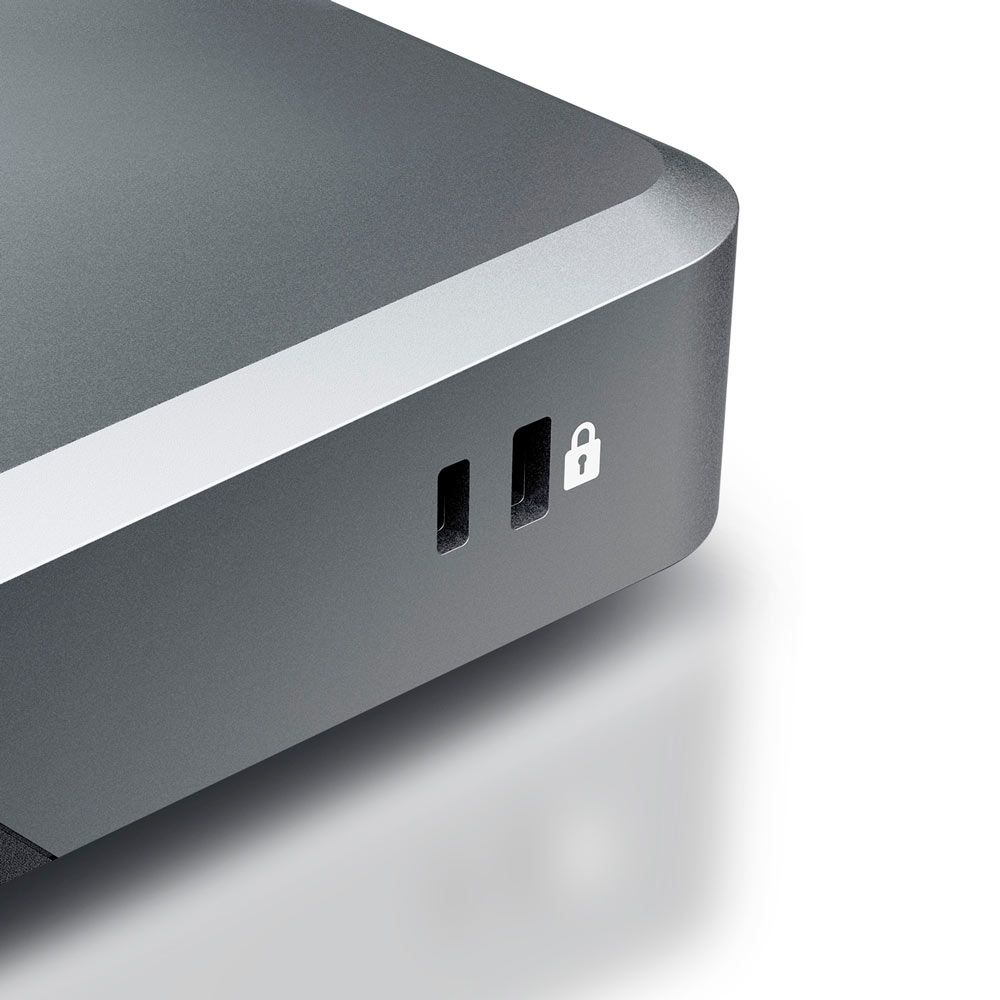

Lock Slot

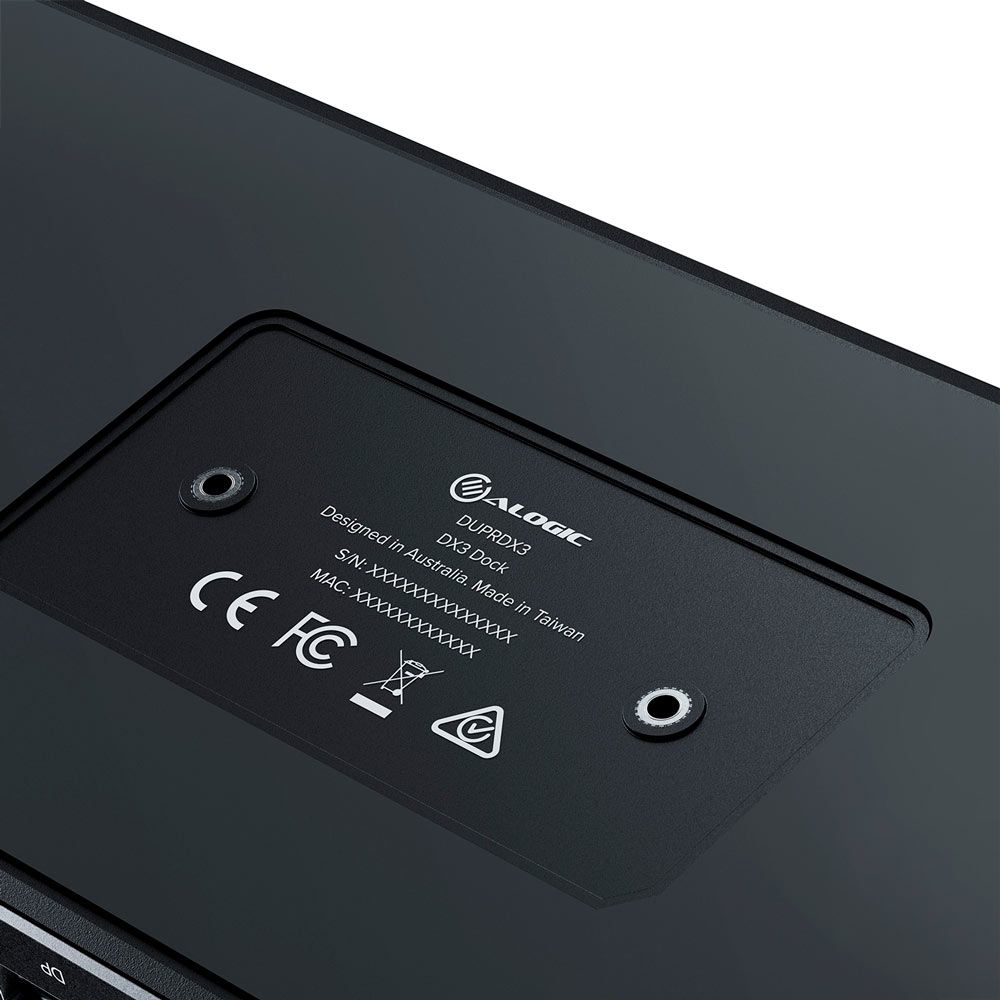

VESA Mount

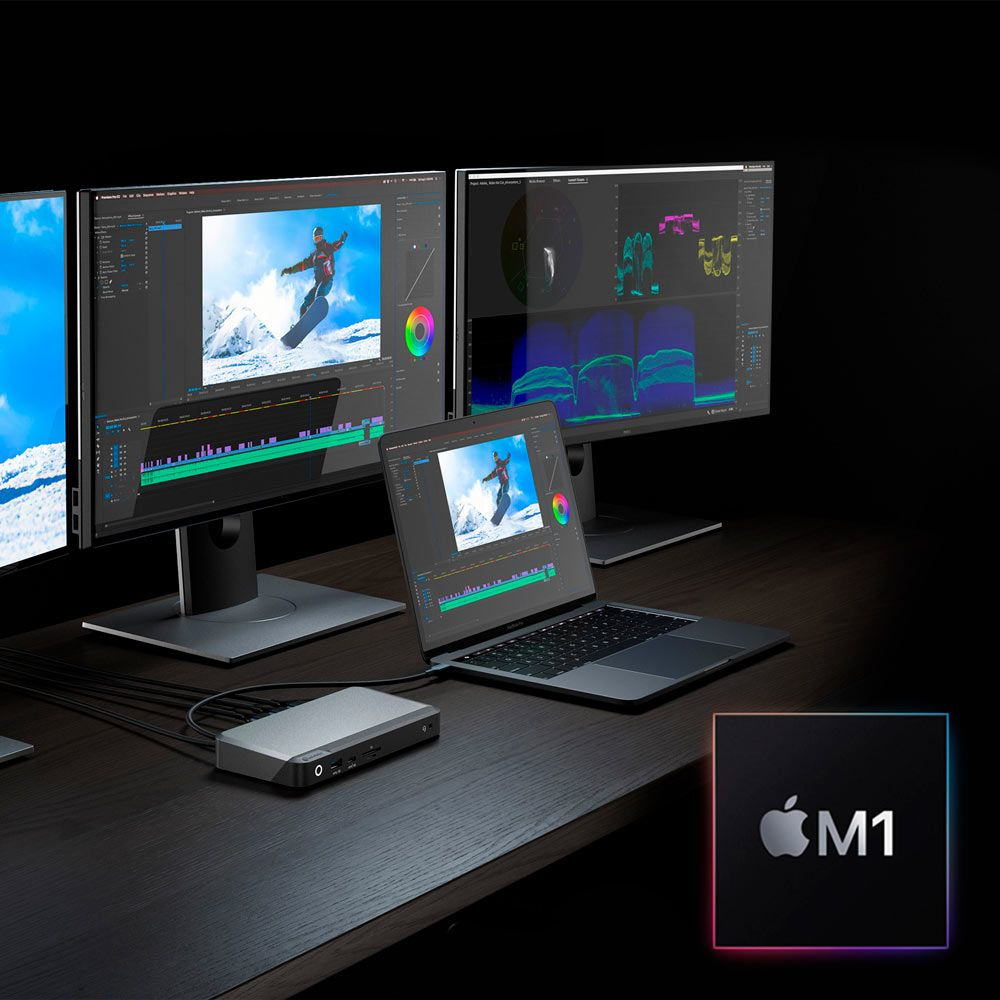

DUAL/TRIPLE DISPLAY ON M1 MAC

M1 Mac users can work on up to three screens when they plug into the DX3.

MADE WITH DISPLAYLINK

The DX3’s DisplayLink technology boosts your connectivity, power and productivity at work.

Additional information

Connectivity technology

Wired

Brand

ALOGIC

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Headphone outputs

1

Combo headphone/mic port

Yes

Headphone connectivity

3.5 mm

DC-in jack

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

1000 Mbit/s

Product colour

Black, Grey

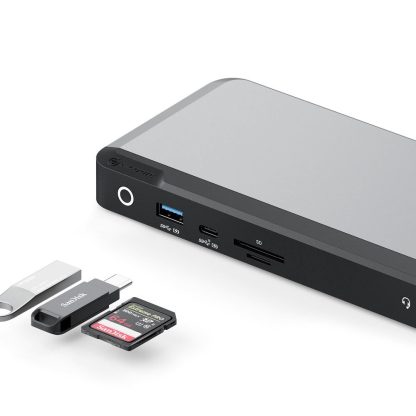

Card reader integrated

Yes

Maximum digital resolution

5120 x 2880 pixels

LED indicators

Yes

Housing material

Acrylonitrile butadiene styrene (ABS)

Certification

FCC

Compatible power plug types

AU, EU, UK, US

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Width

190 mm

Depth

90 mm

Height

6.5 mm

Weight

535 g

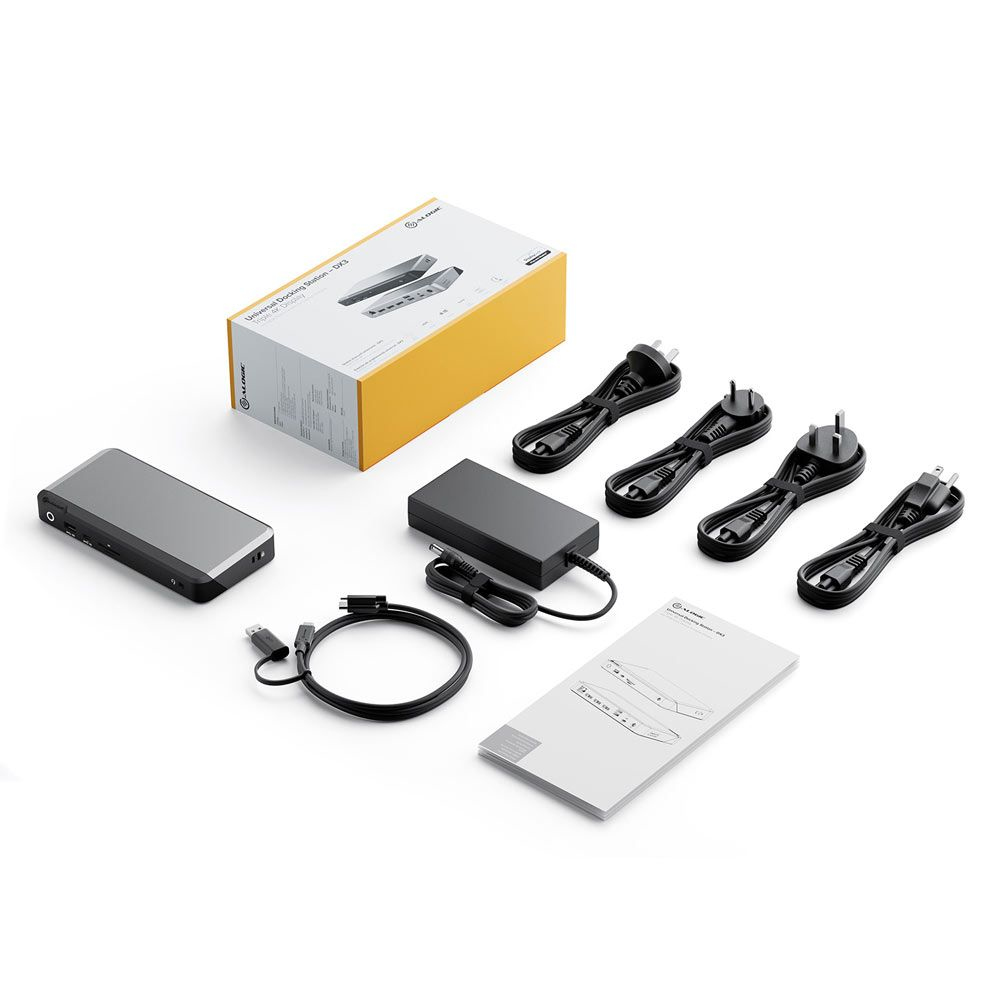

Cables included

AC, USB Type-C

AC adapter included

Yes

Manual

Yes

Interface adapters included

USB Type-C male – USB Type-A female

Cable lock slot

Yes

DisplayPorts quantity

3

USB Power Delivery

Yes

Number of displays supported

3

Quantity per pack

1 pc(s)

Charging function

Yes

Power source type

AC

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB Power Delivery up to

100 W

DisplayPort version

1.4

Compatible memory cards

MicroSD (TransFlash), SD

Plug and Play

Yes

On/off switch

Yes
